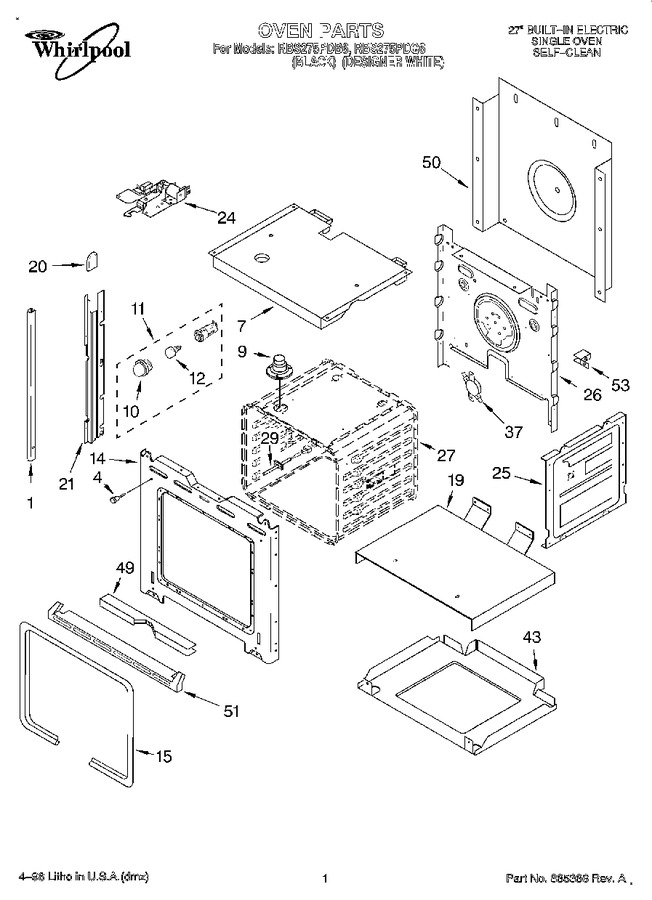

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450844		Trim, Side (rh Black)		Appelez-nous	-
1	4450845		Trim, Side (white, Right)		Appelez-nous	-
1	4450847		Trim, Side (lh Black)		Appelez-nous	-
1	4450848		Trim, Side (lh White)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 6.80
1	4449041		Trim, Side (screw White)				$ 5.27
4	4448520		Bumper, Door				$ 19.07
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	4452043		Top, Chassis		Appelez-nous	-
9	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	4452165		Lens, Light		Appelez-nous	-
11	4450706		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 48.26
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
14	4451739		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4449371)				$ 159.09
19	4451477		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451605		Cap, Spacer				$ 38.55
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 109.53
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 108.63
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 6.73
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 6.80
24	4451663		Solenoid		Appelez-nous	-
24	4451424		Latch Assembly				$ 149.58
24	4451422		Micro Switch N.c.		Appelez-nous	-
24	4451426		Microswitch		Appelez-nous	-
24	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
26	4451545		Back, Chassis		Appelez-nous	-
29	4450026		Sensor		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 49.90
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
43	4451397		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4450289		Trim, Bottom (screw)		Appelez-nous	-
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
53	4449315		Insulation, Wrap				$ 64.81
53	4450364		Insulation, Back		Appelez-nous	-
