SELECT A DIAGRAM

01 - Cover


03 - Door

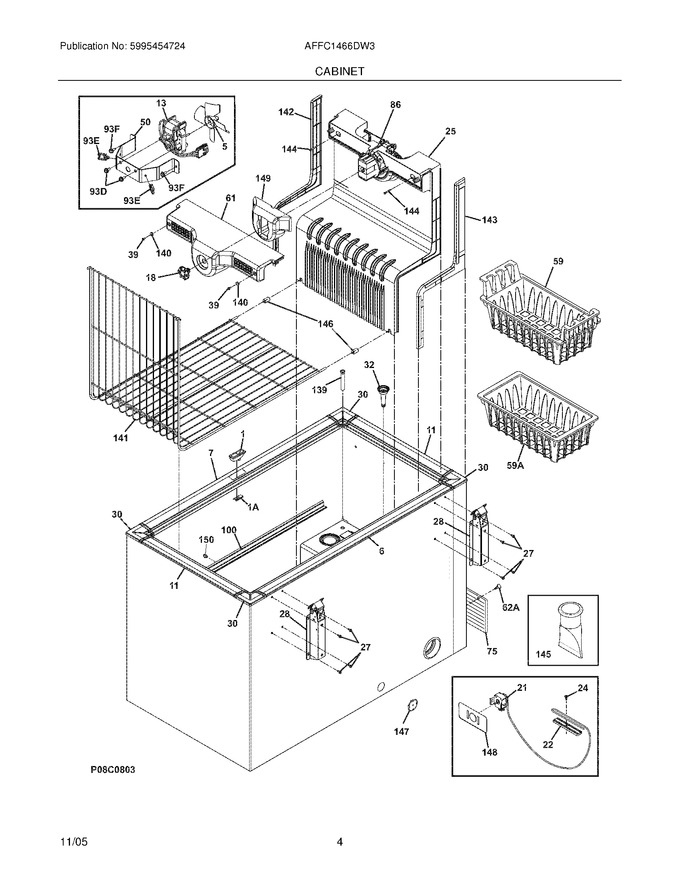

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216909800		Catch-lock,white				$ 54.92
6	216955505		Breaker,hinge Side				$ 7.29
7	216955504		Breaker,lock Side				$ 23.30
11	216955500		Breaker,chest End ,(2)				$ 15.75
13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
18	216965300		Knob,cold Control		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216966000		Cover,evaporator ,manual		Appelez-nous	-
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
28	297321900		Hinge   (Replaces: 216035200)				$ 90.01
30	216110700		Breaker Corners				$ 28.45
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
39	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,square Drive   (Replaces: 5303293767)				$ 14.89
50	216964800		Bracket,fan Motor Mount		Appelez-nous	-
59	216916201		Basket,blue ,upper ,(2)		Appelez-nous	-
61	216965600		Cover,airflow		Appelez-nous	-
75	216034307		Panel-access,white				$ 36.38
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
100	216995200		Track-basket		Appelez-nous	-
139	216965800		Sleeve,suction Line		Appelez-nous	-
140	216968300		Cover-screw		Appelez-nous	-
141	216968400		Trivet,floor Vent		Appelez-nous	-
142	216989300		Spacer,left, With Tape		Appelez-nous	-
143	216989400		Spacer,right,with Tape		Appelez-nous	-
144	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)   (Replaces: 218362500)				$ 12.05
145	216968600		Drain,valve		Appelez-nous	-
146	216314500		Spacer,tube				$ 13.34
147	216650200		Plug,foam		Appelez-nous	-
148	216964700		Bracket,cold Control		Appelez-nous	-
149	216965700		Cover,molded ,foam		Appelez-nous	-
150	216997400		Support,track-basket				$ 10.61
1A	216818900		Support,lock Catch Clip				$ 12.65
59A	216867400		Basket,blue ,lower ,(2)   (Replaces: 216867401)				$ 61.09
62A	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
93D	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
93E	216327800		Clip,wire		Appelez-nous	-
93F	08016582		Screw, Hi-lo Blunt, 8-18 X 1/2, Handle		Appelez-nous	-
F21	216995600		Control,temperature ,with Sleeve		Appelez-nous	-
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
NI	297048000		Screw,anchor ,no.8 ,white				$ 12.05
NI	216993200		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
