View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven
02 - Control Panel, Literature
03 - Oven Door

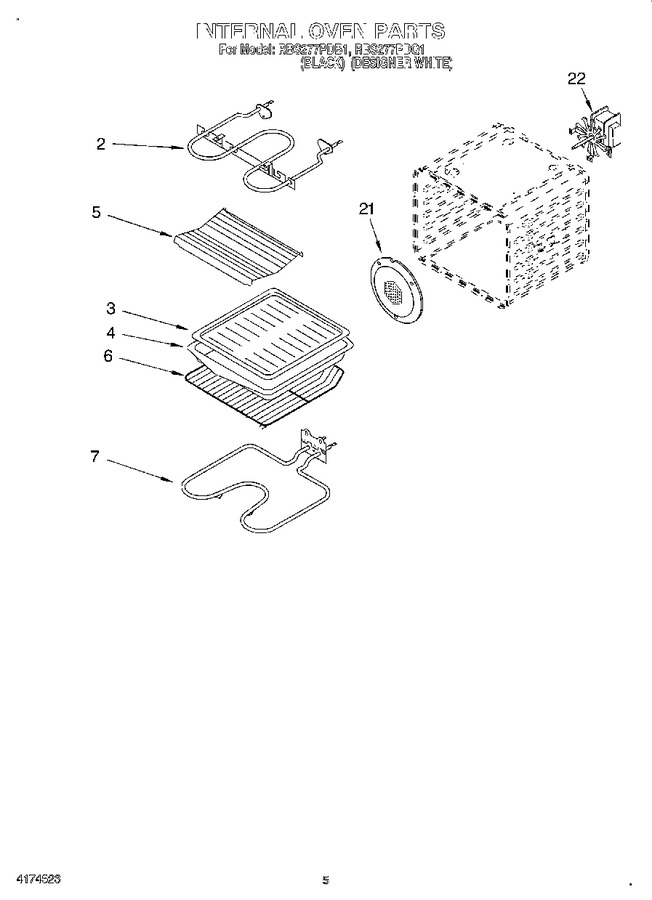

04 - Internal Oven
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 2 | WP9760767 | Element, Broil (Replaces: 4448698) |
|
Immediately | $ 147.74 | ||||
| 3 | 4396923 | Grill, Broiler (Replaces: 3147563) |
|
Immediately | $ 52.04 | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 52.04 | ||||
| 5 | 3181534 | Rack, Roasting |
|
- | |||||
| 6 | 4448715 | Rack, Oven |
|
$ 80.66 | |||||
| 7 | WPW10207397 | Element, Bake (Replaces: 4448696) |
|
Immediately | $ 69.44 | ||||
| 21 | WPW10160821 | Cover, Fan (Replaces: 4448988) |
|
$ 244.79 | |||||
| 21 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 22 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 22 | 4448952 | Motor, Convection Fan |
|
- |
