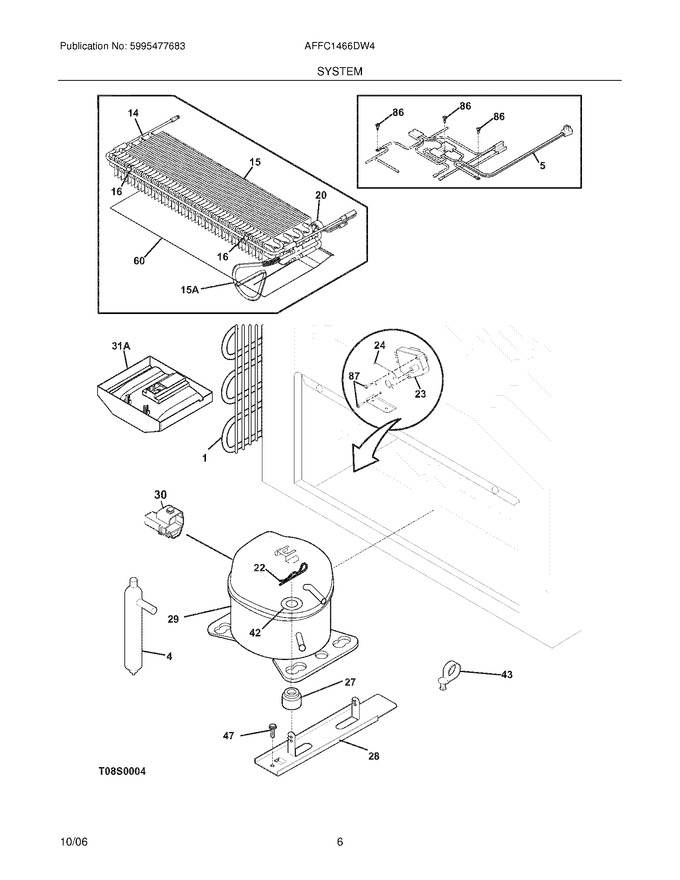

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
24	216968500		Bracket-timer		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
42	216232700		Washer,flat ,1``od X 0.531``id		Appelez-nous	-
43	5303212614		Clip,harness Mount				$ 2.88
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
60	216964900		Shield-heat		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
15A	297031600		Heat Exchanger		Appelez-nous	-
31A	216968800		Pan-drain,evaporator		Appelez-nous	-
F1	5303925238		Condenser				$ 467.78
F14	216967700		Heater-defrost				$ 181.82
F15	216965200		Evaporator,2 Pass		Appelez-nous	-
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	5304507765		Compressor,assy ,w/electricals   (Replaces: 297054400)			Immediately	$ 677.23
F30	5304499966		Relay Combo   (Replaces: 297054500)				$ 79.52
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297023000		Harness-main		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-
