SELECT A DIAGRAM
01 - Oven, Literature
02 - Oven Door
03 - Internal Oven
04 - Control Panel
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:

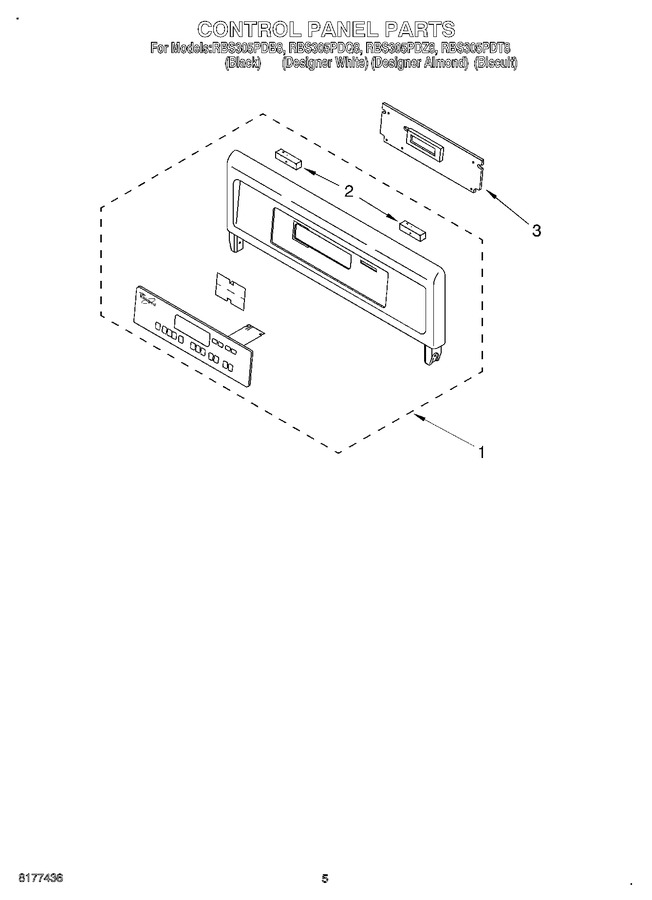

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452705 | Control Panel Assy. W/membrane Switch (black Model) |
|
- | |||||
| 1 | 4452706 | Control Panel Assy. W/membrane Switch (white Model) |
|
- | |||||
| 1 | 4452707 | Control Panel Assy. W/membrane Switch (almond Model) |
|
- | |||||
| 1 | 8300535 | Control Panel Assy. W/membrane Switch (biscuit Model) |
|
- | |||||
| 1 | 4159465 | Control Panel Assy. W/membrane Switch (screw) |
|
- | |||||
| 2 | 4451034 | Gasket, Control Panel |
|
- | |||||
| 3 | 4453193 | Microcomputer |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 |
