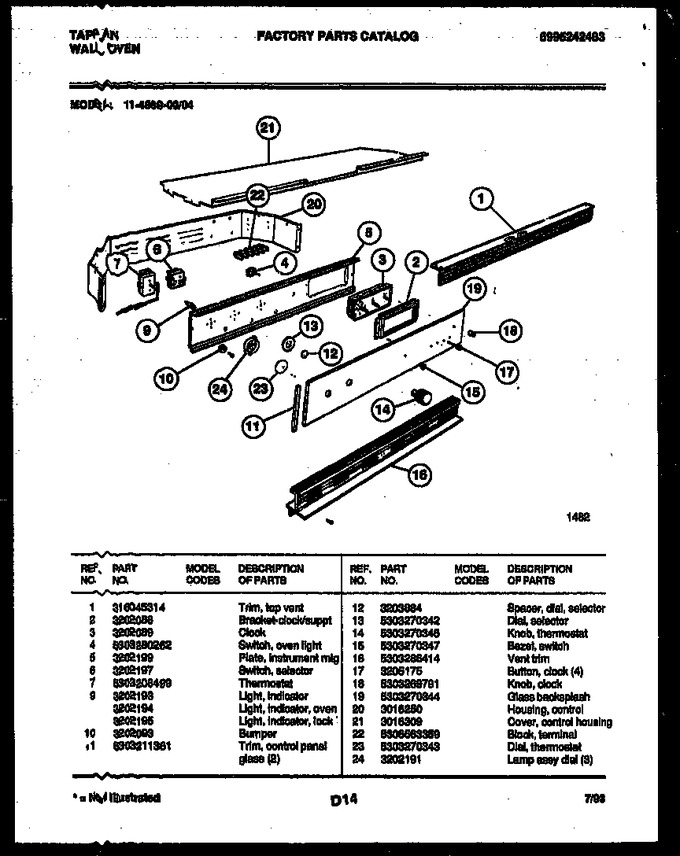

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316045314 | Trim, Top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock/suppt |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 5303280262 | Switch, Oven Light |
|
- | |||||
| 5 | 3202199 | Plate, Instrument Mtg |
|
- | |||||
| 6 | 3202197 | Switch, Selector |
|
- | |||||
| 7 | 5303206499 | Thermostat |
|
- | |||||
| 9 | 3202193 | Light, Indicator |
|
- | |||||
| 10 | 3202093 | Bumper |
|
- | |||||
| 11 | 5303211361 | Trim, Control Panel Glass (2) |
|
- | |||||
| 12 | 3203884 | Spacer, Dial, Selector |
|
- | |||||
| 13 | 5303270342 | Dial, Selector |
|
- | |||||
| 14 | 5303270345 | Knob, Thermostat |
|
- | |||||
| 15 | 5303270347 | Bezel, Switch |
|
- | |||||
| 16 | 5303286414 | Vent Trim |
|
- | |||||
| 17 | 3205175 | Button, Clock (4) |
|
- | |||||
| 18 | 5303269791 | Knob, Clock |
|
- | |||||
| 19 | 5303270344 | Glass Backsplash |
|
- | |||||
| 20 | 3016250 | Housing, Control |
|
- | |||||
| 21 | 3016309 | Cover-control Housing |
|
- | |||||
| 22 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 23 | 5303270343 | Dial, Thermostat |
|
- | |||||
| 24 | 3202191 | Lamp Assy.-dial (3) |
|
- | |||||
| 9A | 3202194 | Light, Indicator, Oven |
|
- | |||||
| 9B | 3202195 | Light, Indicator, Lock |
|
- |
