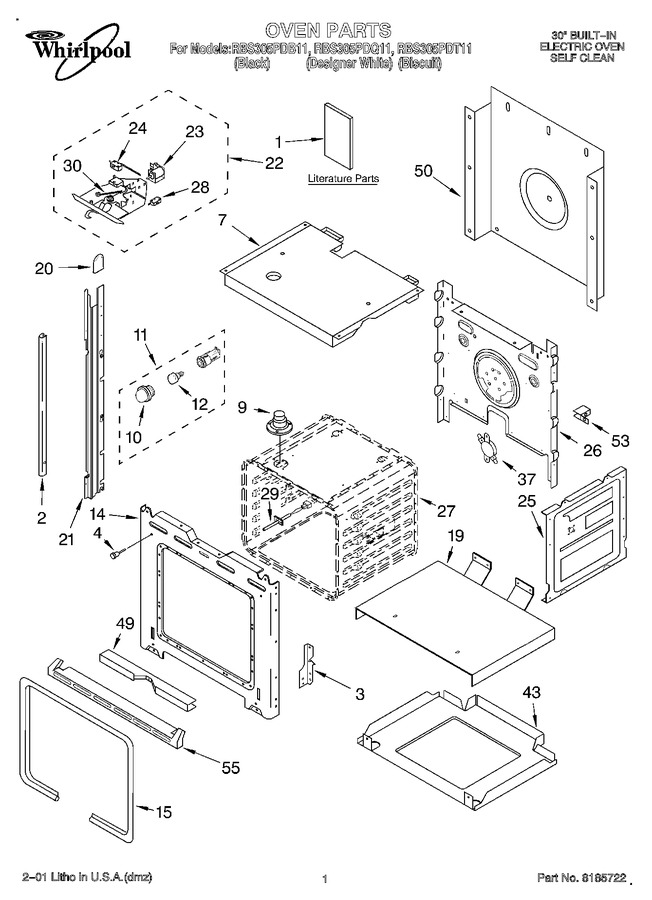

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450411		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4450568		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT4451884		Literature Parts (tech Sheet (oven))		Appelez-nous	-
1	LIT3192225		Literature Parts (installation/ Undercounter)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4450841		Literature Parts (instructions Microwave Trim Kit)		Appelez-nous	-
2	4450848		Trim, Side (left Hand) (white Model)		Appelez-nous	-
2	4449041		Trim, Side (left Hand) (screw)				$ 5.27
2	4450847		Trim, Side (left Hand) (black Model)		Appelez-nous	-
2	4452121		Trim, Side (left Hand) (biscuit Model)		Appelez-nous	-
2	4450845		Trim, Side (white, Right)		Appelez-nous	-
2	4450844		Trim, Side (right Hand) (black Model)		Appelez-nous	-
2	4452120		Trim, Side (right Hand) (biscuit Model)		Appelez-nous	-
2	WP8281236		Trim, Side (left Hand) (screw)   (Replaces: 4449747)				$ 6.80
3	4455521		Reciever, Hinge (right Hand)		Appelez-nous	-
3	4455520		Reciever, Hinge (left Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 19.07
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	4455286		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
9	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 48.26
14	4455612		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 62.78
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 109.53
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 108.63
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 6.73
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 6.80
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
24	4452312		Microswitch N.c.				$ 90.43
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 129.16
26	4452234		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
28	4451426		Switch, Micro		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
30	4451537		Spring, Latch		Appelez-nous	-
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 49.90
43	4455530		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
55	4448478		Trim, Bottom (white Model)		Appelez-nous	-
55	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 6.98
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 107.01
55	4450365		Insulation, Back				$ 70.95
55	4448477		Trim, Bottom (black Model)				$ 71.44
55	4452415		Trim, Bottom (biscuit Model)		Appelez-nous	-
