View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven Parts
02 - Oven Door Parts

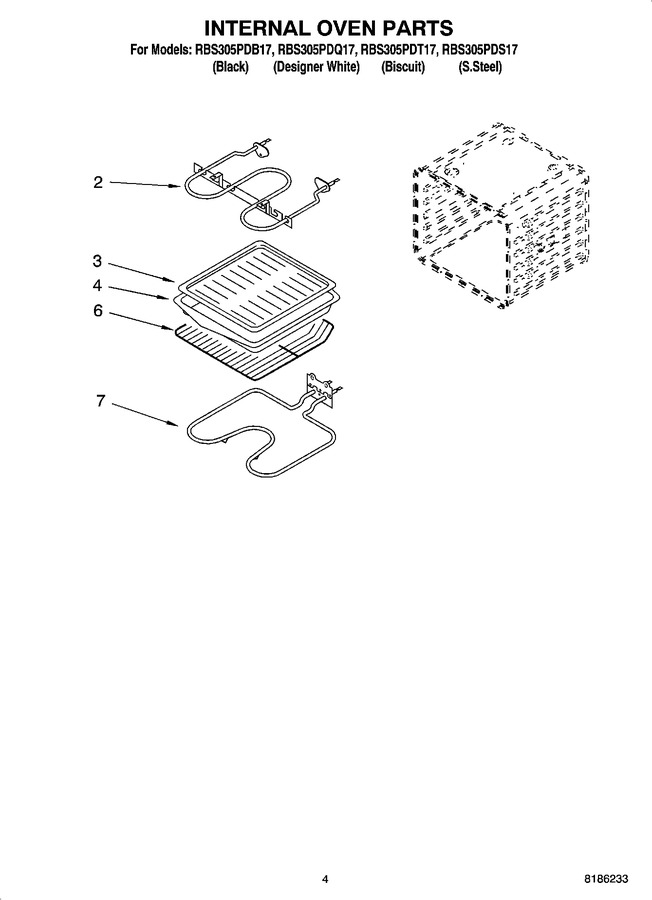

03 - Internal Oven Parts
04 - Control Panel Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP9760771 | Element, Broil (Replaces: 4456103) |
|
Immediately | $ 104.77 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 3 | WP3195996 | Grill, Broiler (Replaces: 4457277) |
|
$ 82.63 | |||||
| 4 | WP3196076 | Pan, Broiler (Replaces: 4457276) |
|
$ 279.38 | |||||
| 6 | WPW10179152 | Rack, Oven (Replaces: 4448717) |
|
Immediately | $ 107.65 | ||||
| 6 | 9759322 | Pad, Rack |
|
- | |||||
| 7 | WPW10207397 | Element, Bake (Replaces: 4452153) |
|
Immediately | $ 69.44 | ||||
| 7 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 |
