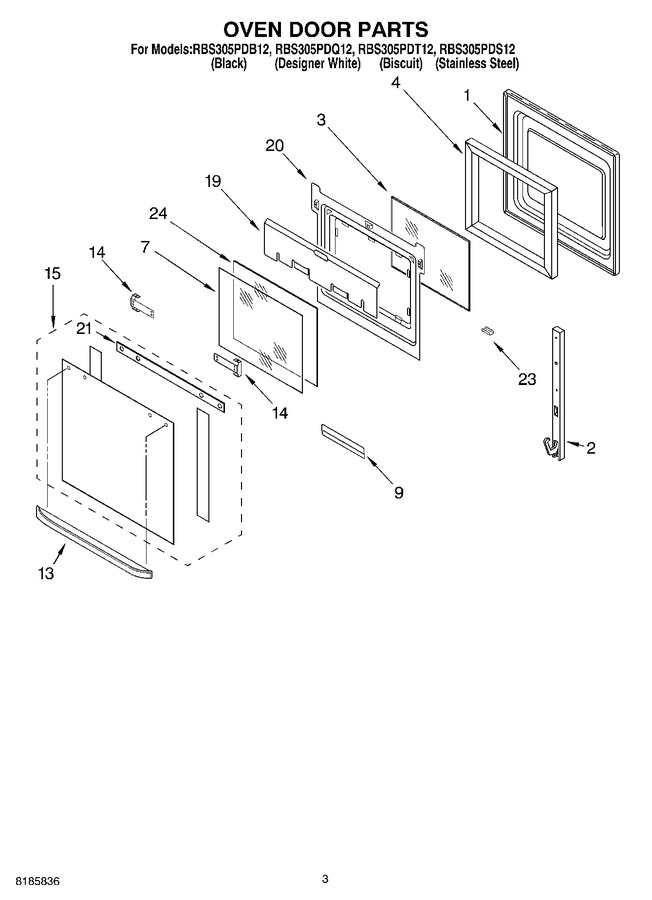

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 317.54
2	WP9760572		Hinge, Door (l.side (white))   (Replaces: 8300572)				$ 95.97
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
2	WP9760571		Hinge, Door (r.side (white))   (Replaces: 8300571)			Immediately	$ 98.15
2	8300573		Hinge, Door (r.side (lt.blue))		Appelez-nous	-
2	WP9760574		Hinge, Door (l.side (lt.blue))   (Replaces: 8300574)			Immediately	$ 60.36
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	4451668		Retainer, Glass		Appelez-nous	-
13	4448854		Door Handle (black Model)				$ 74.07
13	4452860		Door Handle (biscuit Model)		Appelez-nous	-
13	4448855		Door Handle (white Model)		Appelez-nous	-
14	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
14	4450813		Bracket, Handle				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
15	4452066		Assy, Door Glass (white Model)		Appelez-nous	-
15	4452859		Assy, Door Glass (biscuit Model)		Appelez-nous	-
15	4452065		Assy, Door Glass (black Model)		Appelez-nous	-
15	WP9759074		Assy, Door Glass (s.steel Model)   (Replaces: 8300895)				$ 376.41
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	8300778		Retainer, Glass		Appelez-nous	-
20	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
21	8300820		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	WP4449743		Retainer, Clip (screw)   (Replaces: 4449743)				$ 6.47
24	4455257		Glass, Inner				$ 85.45
