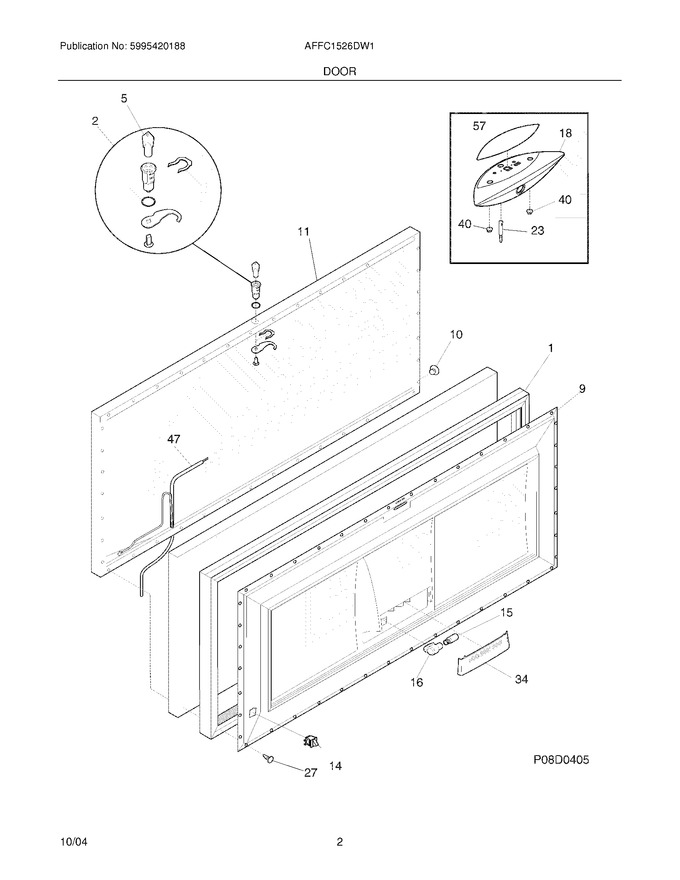

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
2	5303925107		Lock Assy		Appelez-nous	-
9	216829104		Panel-lid				$ 173.57
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216129932		Lid,white				$ 386.56
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216897600		Handle,white				$ 60.58
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
34	5303296969		Shield,lid Lamp		Appelez-nous	-
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
57	216899508		Overlay		Appelez-nous	-
F47	216908000		Harness-lid				$ 148.89
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303313518		Washer, Sealing		Appelez-nous	-
NI	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
