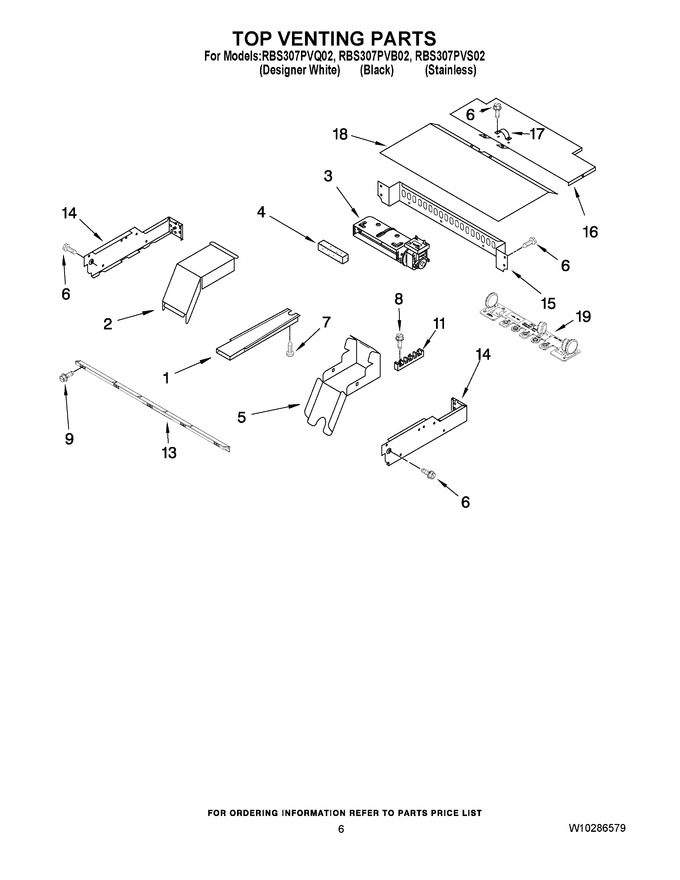

05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 90.01 | |||||
| 2 | 4455178 | Elbow, Vent- Top |
|
$ 13.30 | |||||
| 3 | WPW10176670 | Blower (Replaces: W10176670) |
|
Immediately | $ 237.38 | ||||
| 4 | W10491987 | Foam, Block (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 5 | 4455177 | Elbow, Vent- Bottom |
|
$ 9.77 | |||||
| 6 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 7 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 8 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 9 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 6.84 | |||||
| 11 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 13 | 8303497 | Vent, Control Panel |
|
$ 155.15 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4451597) |
|
- | |||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4451598) |
|
$ 67.21 | |||||
| 15 | 9759135 | Back, Control |
|
- | |||||
| 16 | 4450551 | Cover, Top Rear |
|
- | |||||
| 17 | 4448664 | Clamp |
|
$ 18.35 | |||||
| 18 | WP4452367 | Cover, Top Front (Replaces: 4452367) |
|
$ 68.53 | |||||
| 19 | WP4451985 | Suppressor (Replaces: 4451985) |
|
$ 148.69 |
