| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

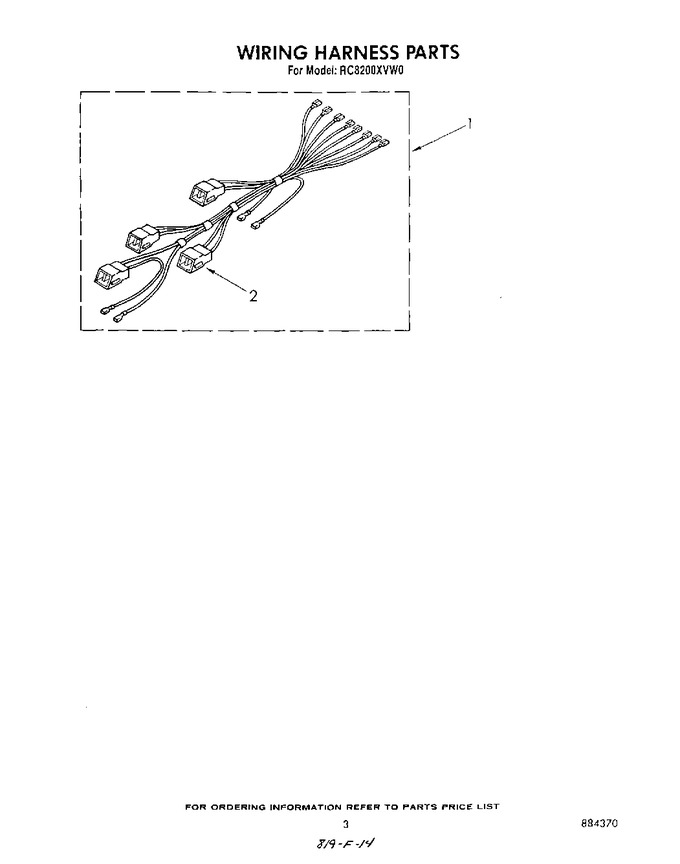

| 1 | 3147827 | Harness, Wiring (surface Unit) |
|
- | |||||
| 2 | 330031 | Receptacle (4) |
|
Immediately | $ 14.48 | ||||
| 2 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 2 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 2 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 2 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 2 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 2 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 2 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 2 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 2 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 2 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 2 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 2 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 2 | 242825 | Wire (14 Ga. 150 C Red) |
|
- |
