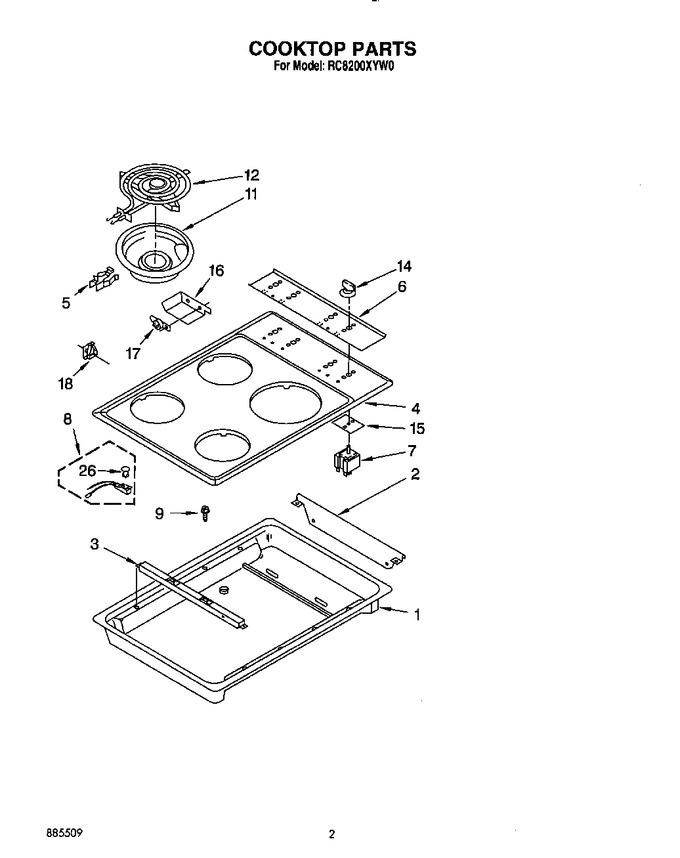

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311017		Burner Box		Appelez-nous	-
2	310716		Shield, Switch		Appelez-nous	-
2	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
3	310717		Support, Cooktop		Appelez-nous	-
3	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
4	3148755		Cooktop (almond)		Appelez-nous	-
4	3148754		Cooktop (white)		Appelez-nous	-
4	3183904		Cooktop (brushed Chrome)		Appelez-nous	-
5	330031		Receptacle, Plug-in (4)   (Replaces: 3147829)			Immediately	$ 14.48
5	WP313808		Screw, 6-32 X 9/32 (4)   (Replaces: 313808)				$ 6.84
6	3183218		Panel, Control		Appelez-nous	-
7	155023		Switch Infinite (screw, 8-32 X 1/4 (8))			Immediately	$ 7.91
7	3148968		Switch, Infinite (use W/6`` Surface Unit (2))		Appelez-nous	-
7	WP3148966		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 3148966)				$ 130.35
8	313462		Light, Indicator (2) (includes No.26)		Appelez-nous	-
9	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
9	3150532		Screw, 10-32 X 1/2 (2) (ground Wire)		Appelez-nous	-
11	WPW10196406		Pan, Surface Unit (6`` (2))   (Replaces: 3150246)			Immediately	$ 12.05
11	W10196405RW		Pan, Surface Unit (8`` (2))   (Replaces: 3150247)			Immediately	$ 18.70
12	WP660533		Element, Surface (8`` (2))   (Replaces: 660530)			Immediately	$ 39.47
12	WP660532		Element, Surface (6`` (2))   (Replaces: 660528)			Immediately	$ 36.90
14	3183120		Knob, Control (4)		Appelez-nous	-
15	3183956		Seal, Switch Shaft (4)				$ 41.81
16	3147830		Bracket, Sensor		Appelez-nous	-
17	WP313808		Screw, 6-32 X 1/4 (3)   (Replaces: 313808)				$ 6.84
17	3147833		Thermostat				$ 0.01
18	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.02
26	313602		Lens, Light		Appelez-nous	-
	LIT311437		Installation Instructions		Appelez-nous	-
	LIT885509		Repair Parts List		Appelez-nous	-
	LIT313358		Cooking Guide		Appelez-nous	-
	LIT3185371		Use & Care Guide		Appelez-nous	-
