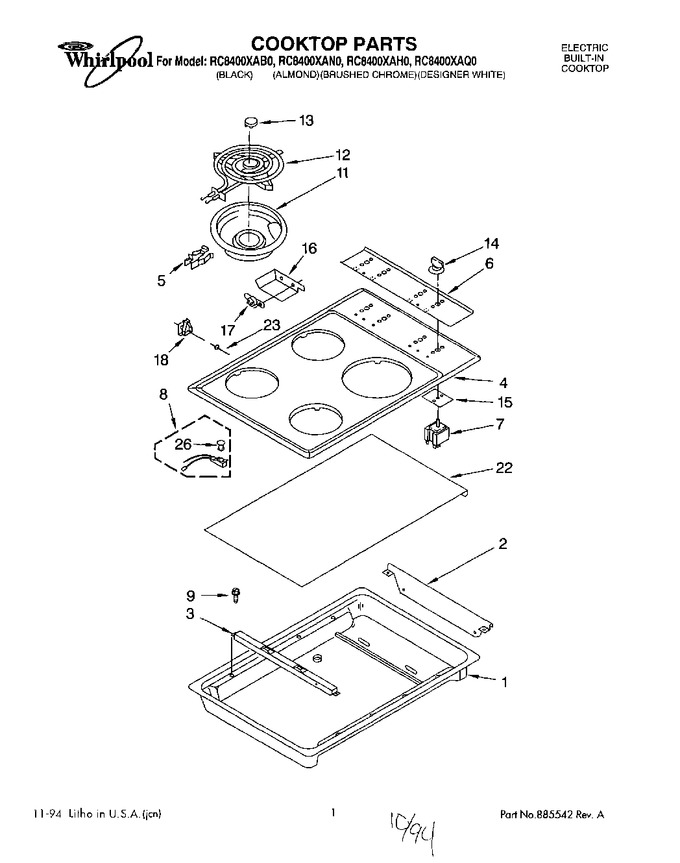

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311017		Burner Box		Appelez-nous	-
2	310716		Shield, Switch		Appelez-nous	-
2	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
3	310717		Support, Cooktop		Appelez-nous	-
3	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
4	3183618		Cooktop (black)		Appelez-nous	-
4	WP488729		Cooktop (screw, 8-18 X 1/2 (4))   (Replaces: 313638)			Immediately	$ 7.01
4	3148754		Cooktop (designer White)		Appelez-nous	-
4	3183904		Cooktop (brushed Chrome)		Appelez-nous	-
4	3148755		Cooktop (almond)		Appelez-nous	-
5	330031		Clip, Mtg. (4)   (Replaces: 3147829)			Immediately	$ 14.48
6	3185691		Panel, Control (black, Almond, Brushed Chrome Models)		Appelez-nous	-
6	3185690		Panel, Control (designer White Model)		Appelez-nous	-
7	WP3148966		Switch, Infinite 8`` Unit (2)   (Replaces: 3148966)				$ 130.35
7	3148967		Switch, Infinite (6`` Unit (2))		Appelez-nous	-
7	155023		Switch Infinite (screw, 8-32 X 1/4 (8))			Immediately	$ 7.91
8	313461		Light, Indicator (2) (includes Lens Part No.313602)		Appelez-nous	-
9	3150532		Screw, 10-32 X .5 (ground Wire)		Appelez-nous	-
11	WPW10196406		Pan, Surface (6`` Pan, Chrome)   (Replaces: 3150246)			Immediately	$ 12.05
11	W10196405RW		Pan, Surface (8`` Pan, Chrome)   (Replaces: 3150247)			Immediately	$ 18.70
11	WPW10290350		Pan, Surface (8`` Pan (black))   (Replaces: 3169205)			Immediately	$ 15.25
11	W10290353RW		Pan, Surface (6`` Pan (black))   (Replaces: 3169204)			Immediately	$ 19.27
12	WP660532		Unit, Surface (2) (6``) (240v)   (Replaces: 660532)			Immediately	$ 36.90
12	WP660533		Unit, Surface (2) (8``) (240v)   (Replaces: 660533)			Immediately	$ 39.47
13	309195		Medallion, Surface Unit		Appelez-nous	-
14	3183119		Knob, Control (4) (designer White Model)		Appelez-nous	-
14	3183120		Knob, Control (4) (black, Almond, Brush Chrome Models)		Appelez-nous	-
15	3183956		Seal, Switch Shaft (4)				$ 41.81
16	3147830		Bracket, Sensor		Appelez-nous	-
17	WP313808		Screw, 6-32 X 1/4 (3)   (Replaces: 313808)				$ 6.84
17	3147833		Thermostat				$ 0.01
18	814103		Clip, Retainer (4)   (Replaces: 3148790)				$ 9.02
22	3185653		Shield, Heat		Appelez-nous	-
22	254225		Screw,		Appelez-nous	-
23	814103		Rivet (4)   (Replaces: 3148789)				$ 9.02
26	313602		Lens, Light		Appelez-nous	-
	LIT311437		Installation Instructions		Appelez-nous	-
	LIT3149383		Wiring Diagram		Appelez-nous	-
	LIT313358		Cooking Guide		Appelez-nous	-
	LIT3185701		Use & Care Guide		Appelez-nous	-
