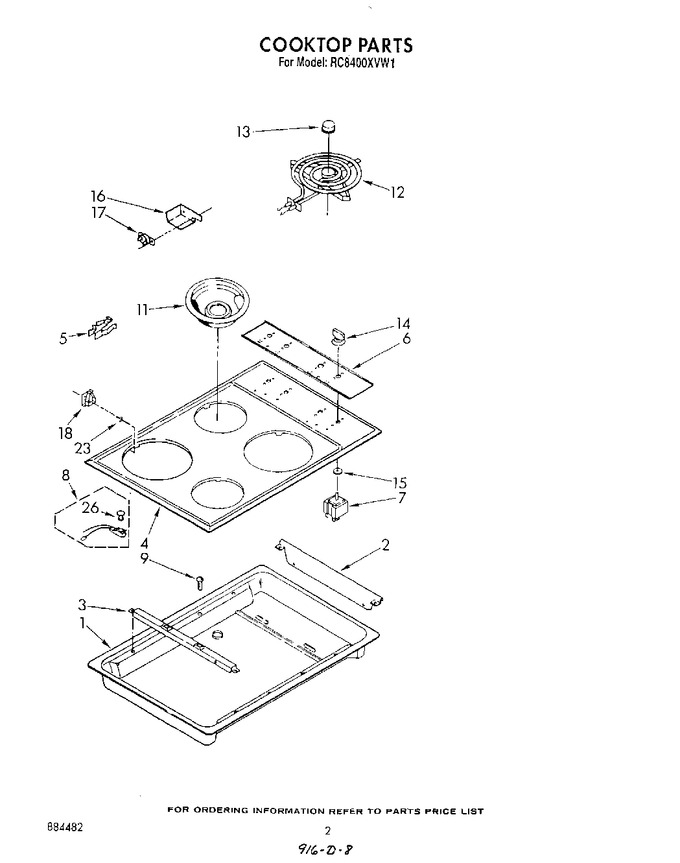

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311017 | Burner Box |
|
- | |||||
| 2 | 310716 | Shield, Switch |
|
- | |||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 3 | 310717 | Support, Cooktop |
|
- | |||||
| 3 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 4 | WP488729 | Cooktop (screw, 8-18 X 1/2 (4)) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 4 | 166681 | Cooktop (screw, 10d - 32 X 5/16) |
|
- | |||||
| 4 | 3148747 | Cooktop (white) |
|
- | |||||
| 4 | 3148750 | Cooktop (harvest Gold) |
|
- | |||||
| 4 | 3148746 | Cooktop (brushed Chrome) |
|
- | |||||
| 4 | 3148748 | Cooktop (almond) |
|
- | |||||
| 5 | 330031 | Clip, Mtg. (4) (Replaces: 3147829) |
|
Immediately | $ 14.48 | ||||
| 6 | 3148704 | Panel, Control |
|
- | |||||
| 7 | 155023 | Switch Infinite (screw, 8-32 X 1/4 (8)) |
|
Immediately | $ 7.91 | ||||
| 7 | 5500-287 | Switch, Infinite (8`` Unit (2)) (Replaces: 3148945) |
|
Immediately | $ 47.15 | ||||
| 7 | W10900107 | Switch, Infinite (6`` Unit (2)) (Replaces: 3148946) |
|
Immediately | $ 51.87 | ||||
| 8 | 313461 | Light, Indicator (2) (includes Lens Part No.313602) |
|
- | |||||
| 9 | 3150532 | Screw, 10-32 X .5 (ground Wire) |
|
- | |||||
| 11 | WPW10196406 | Pan, Surface (6`` Pan) (Replaces: 3150246) |
|
Immediately | $ 12.05 | ||||
| 11 | W10196405RW | Pan, Surface (8`` Pan) (Replaces: 3150247) |
|
Immediately | $ 18.70 | ||||
| 12 | WP660533 | Unit, Surface (2) (8``) (240v) (Replaces: 660533) |
|
Immediately | $ 39.47 | ||||
| 12 | WP660532 | Unit, Surface (2) (6``) (240v) (Replaces: 660532) |
|
Immediately | $ 36.90 | ||||
| 13 | 309195 | Medallion, Surface Unit |
|
- | |||||
| 14 | 3150373 | Knob, Control (4) |
|
- | |||||
| 15 | 309839 | Seal, Switch Shaft (4) |
|
- | |||||
| 16 | 3147830 | Bracket, Sensor |
|
- | |||||
| 17 | WP313808 | Screw, 6-32 X 1/4 (3) (Replaces: 313808) |
|
$ 6.84 | |||||
| 17 | 3147833 | Thermostat |
|
$ 0.01 | |||||
| 18 | 814103 | Clip, Retainer (4) (Replaces: 3148790) |
|
$ 9.02 | |||||
| 23 | 814103 | Rivet (4) (Replaces: 3148789) |
|
$ 9.02 | |||||
| 26 | 313602 | Lens, Light |
|
- | |||||
| LIT311437 | Installation Instructions |
|
- | ||||||
| LIT884482 | Repair Parts List |
|
- | ||||||
| LIT313358 | Cooking Guide |
|
- | ||||||
| LIT3148320 | Guide, Use & Care |
|
- |
