SELECT A DIAGRAM

01 - Cover

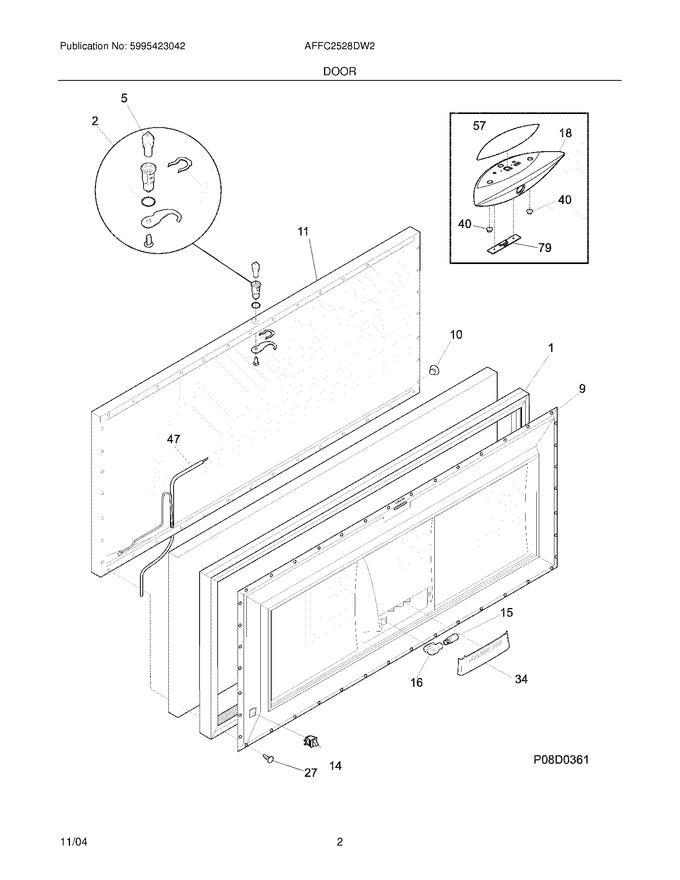

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216469311		Gasket-door, White   (Replaces: 216469301)				$ 187.21
2	5303925107		Lock Assy		Appelez-nous	-
9	216912900		Panel-lid,white				$ 137.45
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216032422		Lid,white				$ 352.64
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216897600		Handle,white				$ 60.58
27	5303212828		Clip,panel Mtg				$ 16.63
34	216578503		Shield-light		Appelez-nous	-
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
57	216899506		Overlay				$ 20.89
F47	216889600		Harness-lid				$ 184.91
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
F79	216898700		Control Board,electronic				$ 58.59
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	216858000		Screw,thno.8-18x.500ab,no.10		Appelez-nous	-
NI	5303313518		Washer, Sealing		Appelez-nous	-
NI	216905300		Screw,control Board ,no.3-24 X .25 ,(3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
