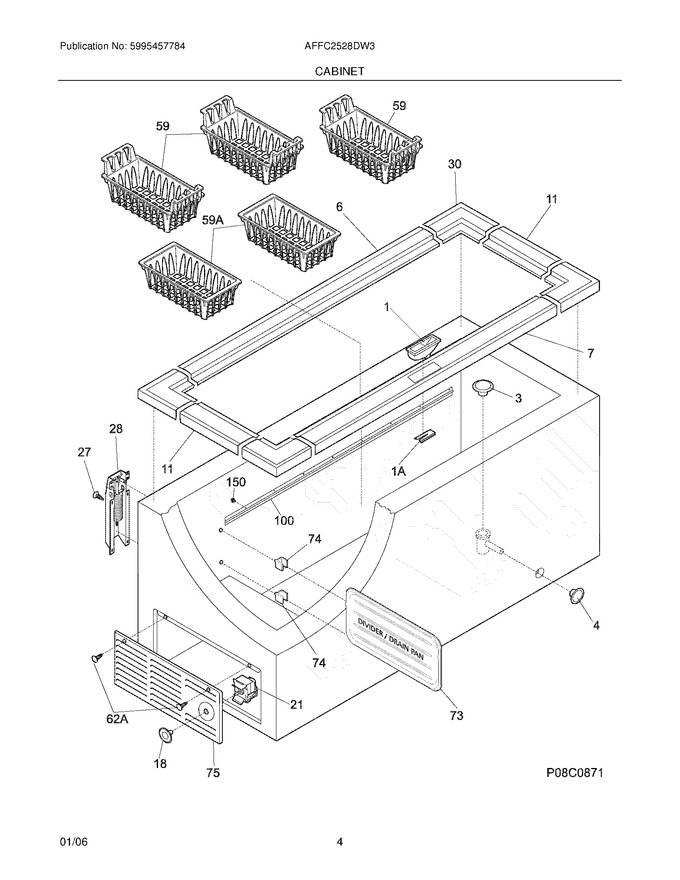

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216909800		Catch-lock,white				$ 54.92
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013605		Plug,drain ,blue ,exterior				$ 8.66
6	216955517		Breaker-hinge Side,white				$ 44.05
7	216955516		Breaker-lock Side,white		Appelez-nous	-
11	216955500		Breaker,chest End ,(2)				$ 15.75
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
28	216035400		Hinge		Appelez-nous	-
30	216110700		Breaker Corners				$ 28.45
59	216916201		Basket,blue ,upper ,(3)		Appelez-nous	-
73	216128200		Divider-drain Pan		Appelez-nous	-
74	216486700		Support,divider ,(4)				$ 51.40
75	216034301		Panel-access, White				$ 103.01
100	216995205		Track-basket		Appelez-nous	-
150	216997400		Support,track-basket				$ 10.61
1A	216818900		Support,lock Catch Clip				$ 12.65
59A	216867400		Basket,blue ,lower ,(2)   (Replaces: 216867401)				$ 61.09
62A	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
F21	216844500		Control-temperature				$ 70.72
NI	216794606		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
