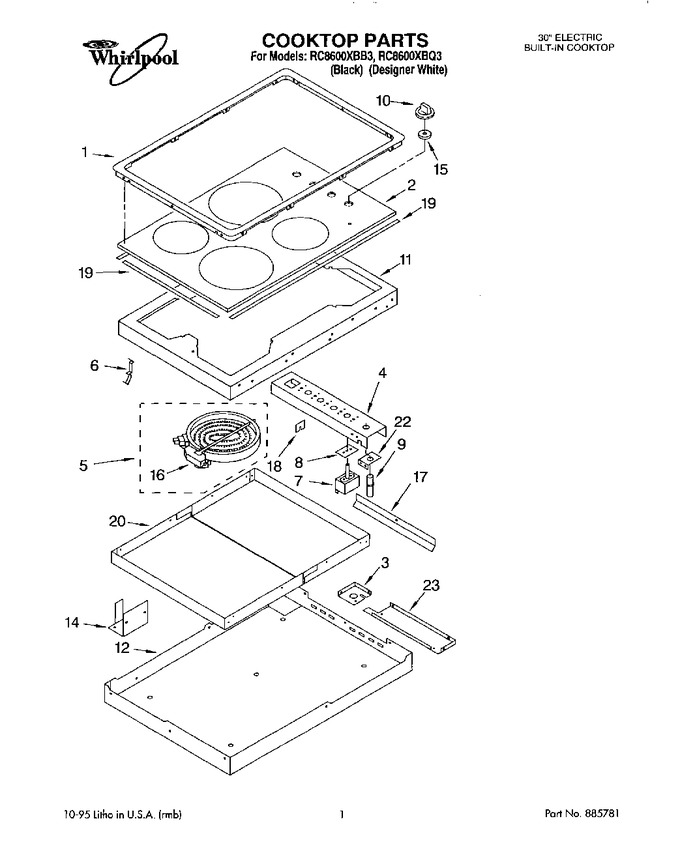

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3189551 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3189552 | Trim Ring, Cooktop (designer White) |
|
- | |||||
| 2 | 3187758 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 3187759 | Cooktop, Glass (designer White) |
|
- | |||||
| 3 | 3189340 | Cover, Conduit |
|
- | |||||
| 3 | 4168863 | Screw (2) |
|
- | |||||
| 4 | 3189342 | Bracket, Switch Mounting |
|
- | |||||
| 4 | 4168863 | Screw (5) |
|
- | |||||
| 5 | 3189897 | Element, Surface (2400w Left Front) |
|
- | |||||
| 5 | 3189896 | Element, Surface (2100w Right Rear) |
|
- | |||||
| 5 | 3189895 | Element, Surface (1700w Right Front) |
|
- | |||||
| 5 | 3189894 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 6 | 3189165 | Spring, Locator (8) |
|
- | |||||
| 6 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 7 | WP486579 | Switch, Infinite (screw (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 7 | 3148965 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 7 | 3148949 | Switch, Infinite (use W/1400w Left Rear & 1700w Right Front Burner) |
|
$ 67.77 | |||||
| 8 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 9 | 4454437 | Light, Indicator |
|
- | |||||
| 10 | 3150374 | Knob, Control (4) (black) |
|
- | |||||
| 10 | 3150020 | Knob, Control (4) (designer White) |
|
- | |||||
| 11 | 3189962 | Backer, Plate |
|
- | |||||
| 11 | 4168863 | Screw (9) |
|
- | |||||
| 12 | 4159456 | Screw (2) |
|
- | |||||
| 12 | 4168863 | Screw, (4) |
|
- | |||||
| 12 | 3189778 | Cover, Bottom |
|
- | |||||
| 14 | 4168863 | Screw, (4) |
|
- | |||||
| 14 | 3189546 | Bracket, Wireway |
|
- | |||||
| 15 | 3182435 | Seal, Switch Shaft (4) |
|
- | |||||
| 16 | 3190252 | Switch, Limiter (use W/3189896 Element) |
|
- | |||||
| 16 | 3190253 | Switch, Limiter (use W/3189894 Element) |
|
- | |||||
| 16 | 3190250 | Switch, Limiter (use W/3189895 Element) |
|
- | |||||
| 16 | 3190251 | Switch, Limiter (use W/3189897 Element) |
|
- | |||||
| 17 | 254225 | Screw (2) |
|
- | |||||
| 17 | 3189502 | Plate, Louver |
|
- | |||||
| 18 | 4159456 | Screw (4) |
|
- | |||||
| 18 | 3188533 | Grommet, Wire Way |
|
- | |||||
| 19 | 3185589 | Seal, Silicone (small (4)) |
|
- | |||||
| 19 | 3185590 | Seal, Silicone (large (2)) |
|
- | |||||
| 20 | 4168863 | Screw (8) |
|
- | |||||
| 20 | 3189336 | Shield, Heat (2) |
|
- | |||||
| 22 | 4159456 | Screw (2) |
|
- | |||||
| 22 | 3189779 | Bracket, Ind. Lite |
|
- | |||||
| 23 | 3189501 | Bottom, Swtch Brkt |
|
- | |||||
| 23 | 4159456 | Screw (3) |
|
- | |||||
| 23 | 4168863 | Screw (3) |
|
- | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 3179589 | Wire, Tie |
|
- | ||||||
| LIT3189792 | Wiring Diagram |
|
- | ||||||
| WA906B | Scraper, Glass (Replaces: 3183488) |
|
Immediately | $ 4.86 | |||||
| LIT3190333 | Use & Care Guide |
|
- | ||||||
| LIT3189548 | Installation Instructions |
|
- | ||||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 3172515 | Hardware, Mtg. |
|
- | ||||||
| 258644 | Screw, Installation 10-24x2`` |
|
- | ||||||
| 3150320 | Clamp, Installation |
|
- |
