01 - Section
02 - Section
New Model Search:

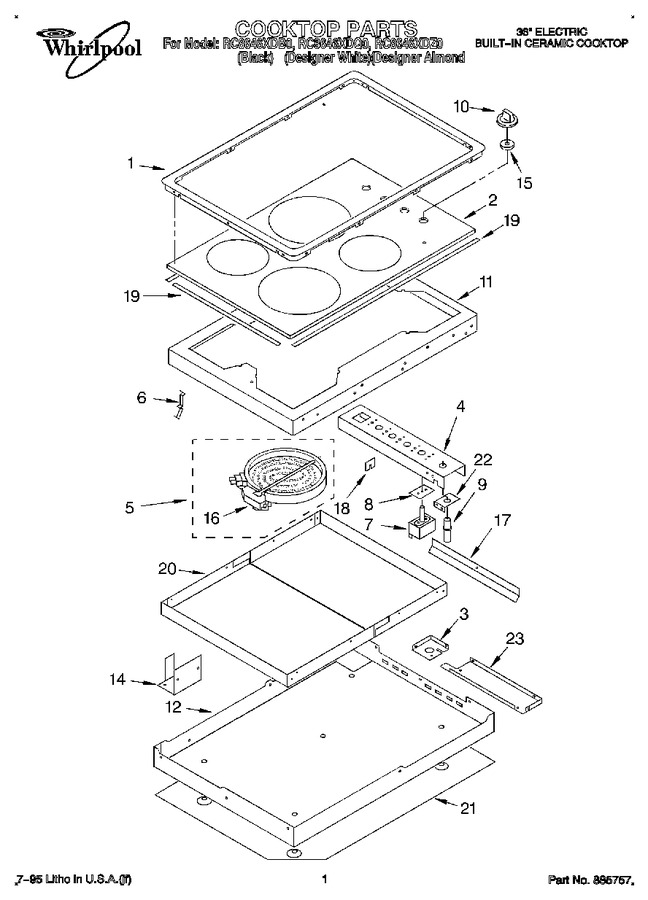

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3189554 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3189555 | Trim Ring, Cooktop (designer White) |
|
- | |||||
| 1 | 3189556 | Trim Ring, Cooktop (designer Almond) |
|
- | |||||
| 2 | 3189544 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 3189549 | Cooktop, Glass (designer Almond) |
|
- | |||||
| 2 | 3189545 | Cooktop, Glass (designer White) |
|
- | |||||
| 3 | 3189340 | Cover, Conduit |
|
- | |||||
| 3 | 4168863 | Screw (2) |
|
- | |||||
| 4 | 3189342 | Bracket, Switch Mounting |
|
- | |||||
| 4 | 4168863 | Screw (5) |
|
- | |||||
| 5 | WP3149400 | Element, Surface (rf 1700w) (Replaces: 3184953) |
|
Immediately | $ 81.46 | ||||
| 5 | W10823694 | Element, Surface (lf 2400w/1000w (dual)) (Replaces: 3187188) |
|
Immediately | $ 320.29 | ||||
| 5 | 3187114 | Element, Surface (rr 2000w/1000w (dual)) |
|
- | |||||
| 5 | 3184951 | Element, Surface (lr 1400w) |
|
- | |||||
| 6 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 6 | 3189165 | Spring, Locator (8) |
|
- | |||||
| 7 | 3148949 | Switch, Infinite (lr & Rf (2)) |
|
$ 67.77 | |||||
| 7 | WP8203529 | Switch, Infinite (rr & Lf (2)) (Replaces: 3189618) |
|
Immediately | $ 146.90 | ||||
| 7 | WP486579 | Switch, Infinite (screw (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 8 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 9 | 4454437 | Light, Indicator |
|
- | |||||
| 10 | 3150376 | Knob, Control (4) (designer Almond) |
|
- | |||||
| 10 | 3150020 | Knob, Control (4) (designer White) |
|
- | |||||
| 10 | 3150374 | Knob, Control (4) (black) |
|
- | |||||
| 11 | 4168863 | Screw (9) |
|
- | |||||
| 11 | 3189781 | Backer, Plate |
|
- | |||||
| 12 | 4159456 | Screw (2) |
|
- | |||||
| 12 | 4168863 | Screw, (4) |
|
- | |||||
| 12 | 3189782 | Cover, Bottom |
|
- | |||||
| 14 | 4168863 | Screw, (4) |
|
- | |||||
| 14 | 3189546 | Bracket, Wireway |
|
- | |||||
| 15 | 3182435 | Seal, Switch Shaft (4) |
|
- | |||||
| 16 | 3187531 | Switch, Limiter (use W/3187114 Rr Dual Element) |
|
- | |||||
| 16 | 3187528 | Switch, Limiter (use W/3184951 Lr Element) |
|
- | |||||
| 16 | 3187529 | Switch, Limiter (use W/3184953 Rf Element) |
|
- | |||||
| 16 | 3187536 | Switch, Limiter (use W/3187188 Lf Dual Element) |
|
- | |||||
| 17 | 3189502 | Plate, Louver |
|
- | |||||
| 17 | 254225 | Screw (2) |
|
- | |||||
| 18 | 3188533 | Grommet, Wire Way |
|
- | |||||
| 18 | 4159456 | Screw (4) |
|
- | |||||
| 19 | 3185589 | Seal, Silicone (small (4)) |
|
- | |||||
| 19 | 3188854 | Seal, Silicone (large (2)) |
|
- | |||||
| 20 | 3189336 | Shield, Heat (2) |
|
- | |||||
| 20 | 4168863 | Screw (8) |
|
- | |||||
| 21 | 4159456 | Screw (5) |
|
- | |||||
| 21 | 3189783 | Shield, Heat (exterior) |
|
- | |||||
| 22 | 3189779 | Bracket, Ind. Lite |
|
- | |||||
| 22 | 4159456 | Screw (2) |
|
- | |||||
| 23 | 4168863 | Screw (3) |
|
- | |||||
| 23 | 4159456 | Screw (3) |
|
- | |||||
| 23 | 3189501 | Bottom, Swtch Brkt |
|
- | |||||
| WA906B | Scraper, Window (Replaces: 3183488) |
|
Immediately | $ 4.86 | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 3172515 | Hardware |
|
- | ||||||
| 258644 | Screw, Installation 10-24x2`` |
|
- | ||||||
| 3150320 | Clamp, Installation |
|
- | ||||||
| 3179589 | Wire, Tie |
|
- | ||||||
| LIT3188921 | Wiring Diagram |
|
- | ||||||
| LIT3189547 | Use & Care Guide |
|
- | ||||||
| LIT3189548 | Installation Instructions |
|
- | ||||||
| 3184478 | Cleaner |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- |
