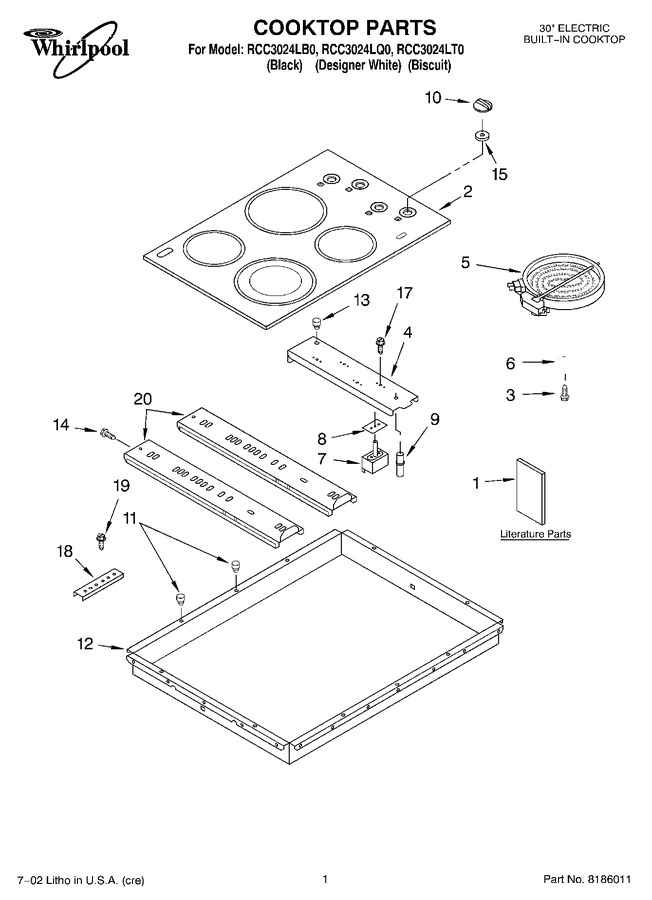

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4455836 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT8284862 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3191772 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | 8285098 | Cooktop, Glass (biscuit) |
|
- | |||||
| 2 | 8285097 | Cooktop, Glass (designer White) |
|
- | |||||
| 2 | 8285096 | Cooktop, Glass (black) |
|
$ 479.34 | |||||
| 3 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 3191310 | Bracket, Switch Mounting |
|
- | |||||
| 5 | W10823711 | Element, Surface (1200w Lr-rf) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 5 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 5 | W10823696 | Element, Surface (2500w Lf) (Replaces: 8523692) |
|
Immediately | $ 192.83 | ||||
| 6 | 3191791 | Spring, Locator (8) |
|
- | |||||
| 7 | WP3191049 | Switch, Infinite (use W/1200w Left Rear & Right Front Burners) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | WP3191050 | Switch, Infinite (use W/1700w Right Rear Burner) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 7 | WP4454541 | Switch, Infinite (use W/2400w Left Front Burner) (Replaces: 4454541) |
|
$ 149.46 | |||||
| 8 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 9 | 3191952 | Light, Indicator |
|
- | |||||
| 10 | WP8522566 | Knob, Control (4) (black) (Replaces: 8522566) |
|
$ 19.11 | |||||
| 10 | 8522567 | Knob, Control (4) (biscuit) |
|
$ 15.97 | |||||
| 10 | WP8522565 | Knob, Control (4) (designer White) (Replaces: 8522565) |
|
Immediately | $ 17.91 | ||||
| 11 | 9750835 | Bumper, Silicone |
|
- | |||||
| 12 | 4455515 | Box, Burner |
|
- | |||||
| 13 | 3191953 | Bumper, Silicone |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 3182435 | Seal, Switch Shaft (4) |
|
- | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 18 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 19 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 20 | WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 6.47 | |||||
| 20 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 20 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 20 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 20 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 20 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 20 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 20 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 20 | 4456147 | Cleaner, Glass |
|
- | |||||
| 20 | 4455280 | Wiring Harness Surface Unit |
|
- | |||||
| 20 | 4456063 | Harness, Conduit |
|
- | |||||
| 20 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 20 | 3191515 | Rail, Element |
|
- | |||||
| 20 | 3192737 | Seal, Limiter |
|
$ 35.16 | |||||
| 20 | 3172515 | Hardware, Mtg. |
|
- | |||||
| 20 | 4455364 | Bracket, Support |
|
$ 82.35 | |||||
| 20 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 20 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 20 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 20 | 242823 | Wire (14 Ga. 150 C Green) |
|
- |
