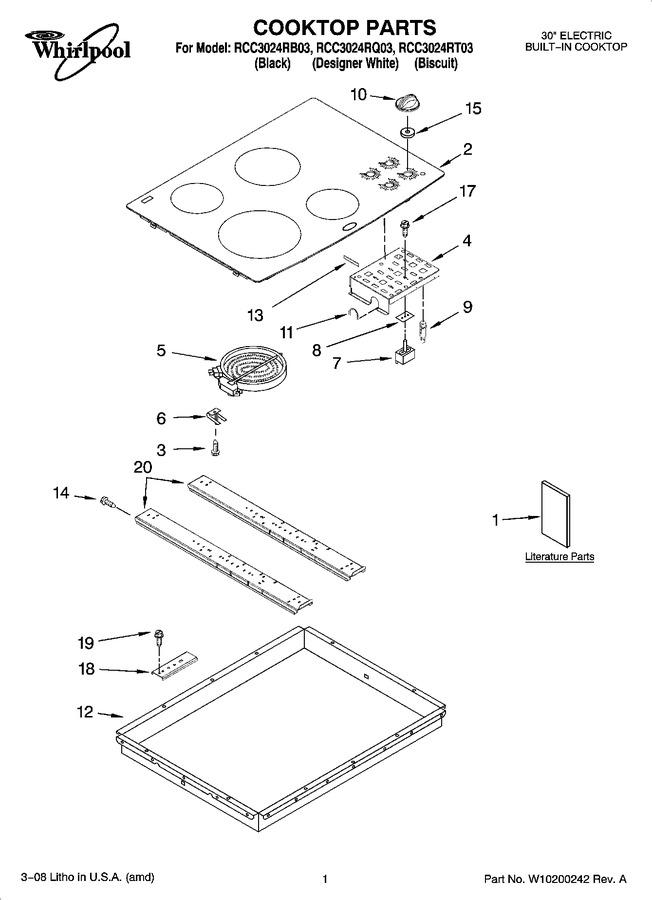

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | 8286066 | Installation Instructions (cooktop) |
|
- | |||||
| 1 | 8304571 | Installation Instructions (undercounter Oven) |
|
- | |||||
| 1 | 8286337 | Wiring Diagram |
|
- | |||||
| 1 | W10162165 | Use & Care Guide |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | W10141724 | Cooktop, Glass (biscuit) |
|
$ 337.95 | |||||
| 2 | W10140990 | Cooktop, Glass (black) |
|
- | |||||
| 2 | W10141723 | Cooktop, Glass (designer White) |
|
$ 399.99 | |||||
| 3 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 4 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | 8285935 | Bracket, Switch Mounting |
|
- | |||||
| 5 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 5 | W10823711 | Element, Surface (1200w Lr-rf) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 5 | W10823696 | Element, Surface (2500w Lf) (Replaces: 8523692) |
|
Immediately | $ 192.83 | ||||
| 6 | 9759094 | Spring, Locator (8) |
|
$ 6.34 | |||||
| 7 | WP3191049 | Switch, Infinite (1200w Lr-rf) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | WP3191050 | Switch, Infinite (1700w Rr) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 7 | WP4454541 | Switch, Infinite (2400w Lf) (Replaces: 4454541) |
|
$ 149.46 | |||||
| 8 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 9 | 3193012 | Light, Indicator |
|
$ 99.17 | |||||
| 10 | WP8286043BL | Knob, Control (4) (black) (Replaces: 8286043BL) |
|
$ 20.30 | |||||
| 10 | 8286043WH | Knob, Control (4) (designer White) |
|
$ 19.87 | |||||
| 10 | 8286043BT | Knob, Control (4) (biscuit) |
|
$ 91.99 | |||||
| 11 | 8286607 | Grommet-flexible |
|
- | |||||
| 12 | 8285862 | Box, Burner |
|
- | |||||
| 13 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Seal, Switch Shaft (4) |
|
$ 45.00 | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 18 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 19 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 20 | 9763517 | Rail, Element |
|
$ 62.80 | |||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 8285996 | Wiring Harness Surface Unit |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP3400015 | Screw (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 8286346 | Harness Conduit |
|
- | ||||||
| WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 |
