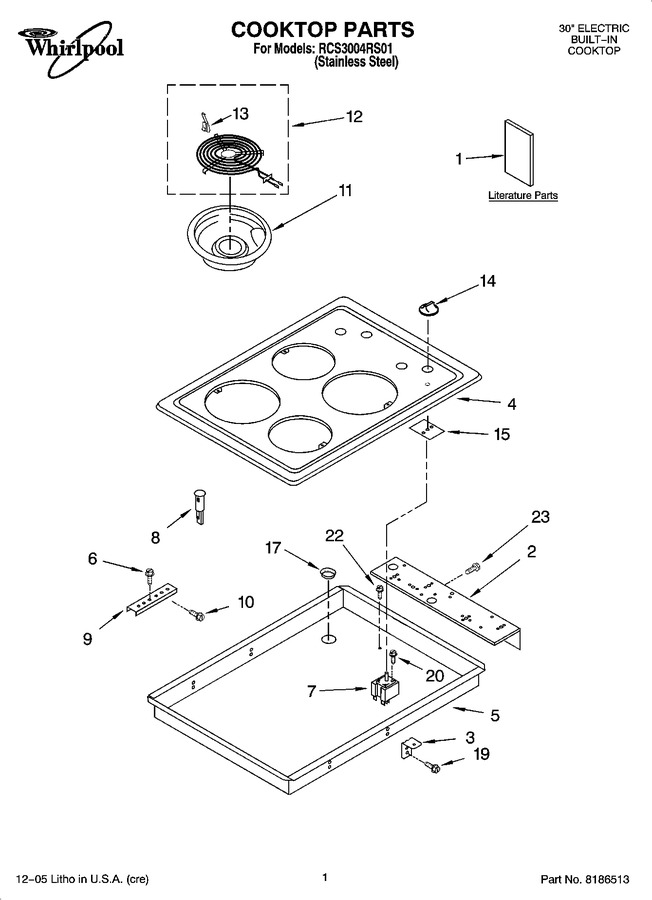

01 - Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 8286310 | Installation, Instructions |
|
- | |||||
| 1 | 8286613 | Use & Care Guide |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips |
|
- | |||||
| 2 | 8286401 | Bracket, Switch Mounting |
|
- | |||||
| 3 | 3192454 | Bracket, Mounting |
|
- | |||||
| 4 | 8286390LM | Cooktop (stainless Steel) |
|
- | |||||
| 5 | 8286373 | Burner Box |
|
- | |||||
| 6 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 7 | WP3191471 | Switch Infinite (use W/6`` Element (blue Shaft)) (Replaces: 3191471) |
|
$ 170.54 | |||||
| 7 | WP3191472 | Switch Infinite (use W/8`` Element (silver Shaft)) (Replaces: 3191472) |
|
$ 150.84 | |||||
| 8 | WP4456181 | Light, Indicator (Replaces: 4456181) |
|
$ 95.36 | |||||
| 9 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 10 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 11 | WPW10196406 | Pan, Surface (6`` Pan (2)) (Replaces: 3195208) |
|
Immediately | $ 12.05 | ||||
| 11 | W10196405RW | Pan, Surface (8`` Pan (2)) (Replaces: 3195209) |
|
Immediately | $ 18.70 | ||||
| 12 | WPW10345407 | Unit, Surface (6`` (2)) (Replaces: 8053265) |
|
Immediately | $ 141.79 | ||||
| 12 | WP9761346 | Unit, Surface (8`` (2)) (Replaces: 8053267) |
|
Immediately | $ 94.16 | ||||
| 13 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 6.96 | ||||
| 14 | WP8286043BL | Knob, Control (4) (Replaces: 8286043BL) |
|
$ 20.30 | |||||
| 15 | 3183956 | Seal, Switch |
|
$ 41.81 | |||||
| 17 | 3191506 | Bushing, Conduit |
|
- | |||||
| 19 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 20 | 3400855 | Screw, 8-32 X 1/4 |
|
- | |||||
| 22 | WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 6.47 | |||||
| 23 | 8286375 | Conduit Assembly |
|
- | |||||
| 23 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 23 | N/A | Wiring Harness Parts |
|
- | |||||
| 23 | 8286368 | Harness, Wire (main) |
|
$ 157.44 | |||||
| 23 | 4455805 | Grommet |
|
- | |||||
| 23 | W10491985 | Screw, 8-18 X 1/4 (Replaces: 3196160) |
|
Immediately | $ 6.47 |
