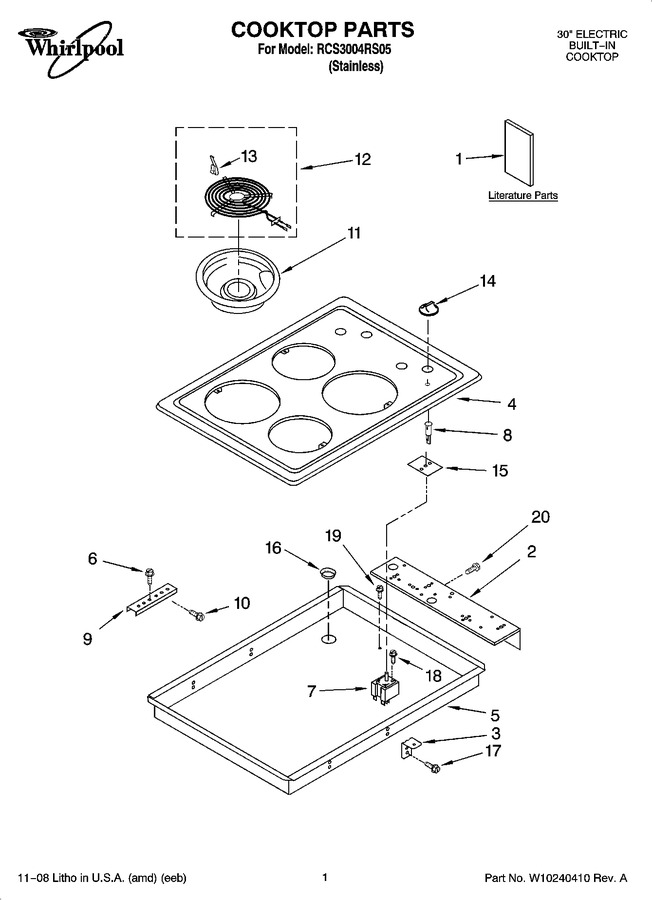

01 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10162164		Use & Care Guide		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	8286310		Installation, Instructions		Appelez-nous	-
2	8286401		Bracket, Switch Mounting		Appelez-nous	-
3	3192454		Bracket, Mounting		Appelez-nous	-
4	W10140171		Cooktop		Appelez-nous	-
5	8286373		Burner Box		Appelez-nous	-
6	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
7	WP3191472		Switch Infinite (use W/8`` Element (silver Shaft))   (Replaces: 3191472)				$ 150.84
7	WP3191471		Switch Infinite (use W/6`` Element (blue Shaft))   (Replaces: 3191471)				$ 170.54
8	WP4456181		Light, Indicator   (Replaces: 4456181)				$ 95.36
9	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
10	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
11	WPW10196406		Pan, Surface (6`` Pan (2))   (Replaces: W10196406)			Immediately	$ 12.05
11	WPW10196405		Pan, Surface (8`` Pan (2))   (Replaces: W10196405)			Immediately	$ 15.56
12	WP9761346		Unit, Surface (8`` (2))   (Replaces: 8053267)			Immediately	$ 94.16
12	WPW10345407		Unit, Surface (6`` (2))   (Replaces: 8053265)			Immediately	$ 141.79
13	WP3195917		Clip, Element   (Replaces: 3195917)			Immediately	$ 6.96
14	WP8286043BL		Knob, Control (4)   (Replaces: 8286043BL)				$ 20.30
15	3183956		Seal, Switch				$ 41.81
16	3191506		Bushing, Conduit		Appelez-nous	-
17	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
18	3400855		Screw		Appelez-nous	-
19	WP3400015		Screw   (Replaces: 3400015)				$ 6.47
20	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
	8286368		Harness, Main				$ 157.44
	4455805		Grommet		Appelez-nous	-
	8286375		Conduit Assembly		Appelez-nous	-
