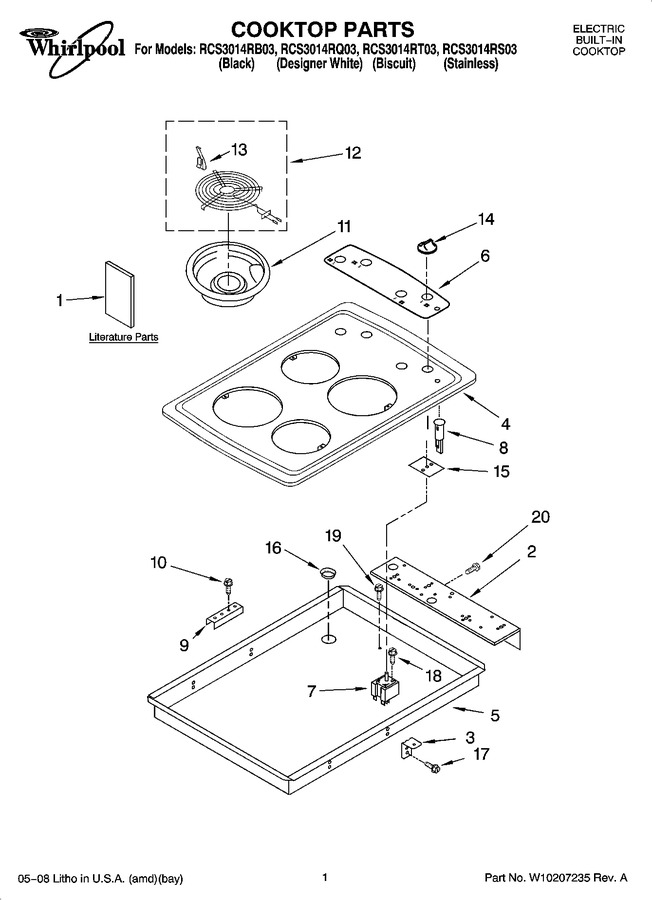

01 - Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286310 | Installation, Instructions |
|
- | |||||
| 1 | W10162164 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | 8286401 | Bracket, Switch Mounting |
|
- | |||||
| 3 | 3192454 | Bracket, Mounting |
|
- | |||||
| 4 | W10140170 | Cooktop (stainless) |
|
- | |||||
| 4 | 8286392BT | Cooktop (biscuit) |
|
- | |||||
| 4 | 8286392BL | Cooktop (black) |
|
$ 44.90 | |||||
| 4 | 8286392WH | Cooktop (designer White) |
|
- | |||||
| 5 | 8286373 | Burner Box |
|
- | |||||
| 6 | 8286501 | Panel, Control (biscuit) |
|
- | |||||
| 6 | 8286499 | Panel, Control (black) |
|
$ 19.39 | |||||
| 6 | 8286500 | Panel, Control (white) |
|
$ 19.93 | |||||
| 7 | WP3191472 | Switch Infinite (use W/8`` Element (silver Shaft)) (Replaces: 3191472) |
|
$ 150.84 | |||||
| 7 | WP3191471 | Switch Infinite (use W/6`` Element (blue Shaft)) (Replaces: 3191471) |
|
$ 170.54 | |||||
| 8 | WP4456181 | Light, Indicator (Replaces: 4456181) |
|
$ 95.36 | |||||
| 9 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 10 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 11 | WPW10196405 | Pan, Surface (8`` Pan (2)) (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 11 | WPW10196406 | Pan, Surface (6`` Pan (2)) (Replaces: W10196406) |
|
Immediately | $ 12.05 | ||||
| 12 | WP3191454 | Unit, Surface (8`` (2) 240v) (Replaces: 3191454) |
|
$ 163.63 | |||||
| 12 | WP660532 | Unit, Surface (6`` (2) 240v) (Replaces: 8053266) |
|
Immediately | $ 36.90 | ||||
| 13 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 6.96 | ||||
| 14 | 8286043BT | Knob, Control (4) (biscuit) |
|
$ 91.99 | |||||
| 14 | 8286043WH | Knob, Control (4) (white) |
|
$ 19.87 | |||||
| 14 | WP8286043BL | Knob, Control (4) (black) (Replaces: 8286043BL) |
|
$ 20.30 | |||||
| 15 | 3183956 | Seal, Switch |
|
$ 41.81 | |||||
| 16 | 3191506 | Bushing, Conduit |
|
- | |||||
| 17 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 18 | 3400855 | Screw |
|
- | |||||
| 19 | WP3400015 | Screw (Replaces: 3400015) |
|
$ 6.47 | |||||
| 20 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 8286375 | Conduit Assembly |
|
- | ||||||
| 4455805 | Grommet, Harness |
|
- | ||||||
| 8286368 | Harness, Main |
|
$ 157.44 |
