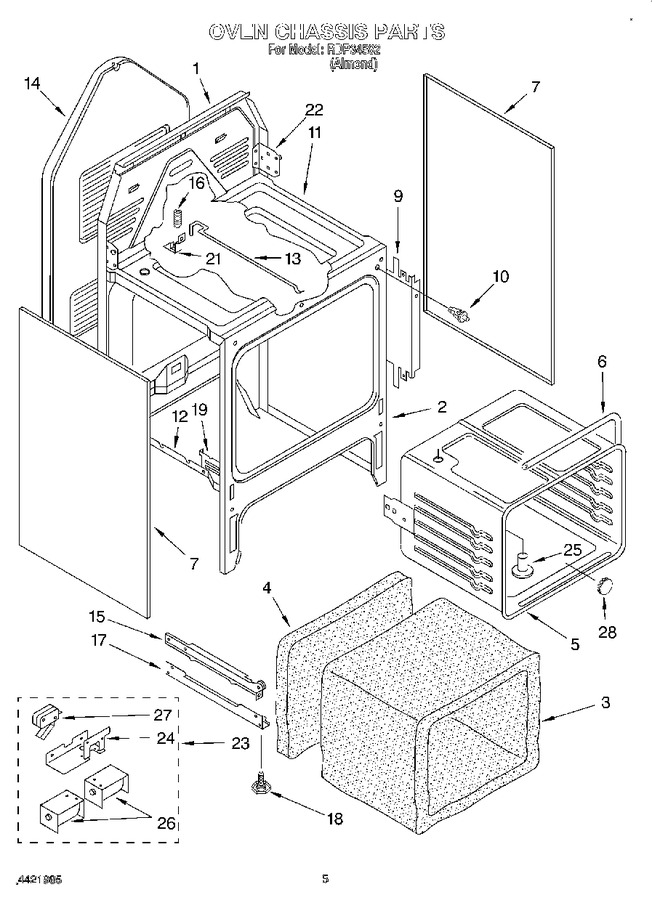

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780810		Main Chassis, Back		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	9750222		Insulation, Wrap		Appelez-nous	-
4	9750221		Insulation, Rear		Appelez-nous	-
5	9781293GM		Oven Liner		Appelez-nous	-
6	9750247		Gasket Oven		Appelez-nous	-
7	9780265		Oven , Side Panel (screw (4) 10 X 3/8)		Appelez-nous	-
7	9750148PT		Oven , Side Panel (white, L Or R)		Appelez-nous	-
9	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
9	9780664		Shield, Insulation		Appelez-nous	-
10	9781580		Door Switch (oven Light)				$ 65.75
11	9750479GM		Burner Box		Appelez-nous	-
11	9780275		Screw, (2) 8 X 3/8		Appelez-nous	-
11	9780265		Screw (7) 10 X 3/8		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
12	9780265		Screw (9) 10 X 3/8		Appelez-nous	-
13	9750523		Rod, Lock		Appelez-nous	-
14	9750150		Panel, Rear		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9750224		Rail, Drawer (right)		Appelez-nous	-
16	9750833		Spring, Door Lock		Appelez-nous	-
17	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9750149		Receiver, Hinge (r Or L)		Appelez-nous	-
19	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
19	9780270		Screw (2) 8 X 3/8		Appelez-nous	-
21	9750834		Bracket, Spring		Appelez-nous	-
21	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
22	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
23	9750522		Oven Lock Assembly		Appelez-nous	-
23	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
24	9750526		Bracket, Lock		Appelez-nous	-
24	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
25	9750736		Vent Tube		Appelez-nous	-
26	422222		Screw (2) 10-32 X 5/16		Appelez-nous	-
26	9750524		Solenoid, (2)		Appelez-nous	-
26	424238		Washer, No.10 (2)		Appelez-nous	-
27	9750888		Nut (2)		Appelez-nous	-
27	9750887		Screw, (2)		Appelez-nous	-
27	9750965		Switch, Interlock				$ 72.00
28	9780578		Plug, Button		Appelez-nous	-
