Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327903 Oven (continuous Clean) Appelez-nous -
2 306151 Frame, Front Appelez-nous -
3 311591 Seal, Door Appelez-nous -
4 309246 Shield, Upper Oven Appelez-nous -
5 308043 Screw, 10-12 X 7/8 Appelez-nous -
5 WP965173 Screw, 8 X 3/8 (4)   (Replaces: 246132) In-Stock Immediately $ 9.65

5 309536 Latch Plate (upper Oven) Appelez-nous -
6 246076 Screw, 10-24 X 3/8 (2) Appelez-nous -
6 328182 Bracket, Hinge Appelez-nous -
7 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

7 308091 Bottom Panel Appelez-nous -
8 310803 Socket Assembly, L. H. Appelez-nous -
8 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 9.65

8 328277 Socket Assembly, R.h. Appelez-nous -
9 308090 Baffle Appelez-nous -
9 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

10 WP681414 Screw, 10-16 X 1/2 (3)   (Replaces: 343641) In-Stock Immediately $ 7.07

10 308839 Bracket, Receptacle Appelez-nous -
10 254217 Screw, 10a X 3/8 (2) Appelez-nous -
12 312378 Support, Tubing R.h. Appelez-nous -
12 312533 Support, Tubing L.h. Appelez-nous -
13 312810 Gusset, R.h. Appelez-nous -
13 WP308544 Screw, 10-24 X 1/2 (6)   (Replaces: 308544) In-Stock Immediately $ 6.98

13 312812 Gusset, L.h. Appelez-nous -
14 312457 Panel, Side L.h. (white) Appelez-nous -
14 312455 Panel, Side L.h. (platinum Panel, Side R.h.) Appelez-nous -
14 WP308544 Panel, Side L.h. (screw, 10-24 X 1/2 (8))   (Replaces: 308544) In-Stock Immediately $ 6.98

14 312454 Panel, Side L.h. (toast) Appelez-nous -
14 312453 Panel, Side L.h. (almond) Appelez-nous -
14 312452 Panel, Side L.h. (harvest Gold) Appelez-nous -
14 312449 Panel, Side L.h. (white) Appelez-nous -
14 WP488627 Panel, Side L.h. (screw, 8a X 1/2 (2))   (Replaces: 338156) Special Order $ 6.81

14 312461 Panel, Side L.h. (almond) Appelez-nous -
14 312462 Panel, Side L.h. (toast) Appelez-nous -
14 312463 Panel, Side L.h. (platinum) Appelez-nous -
14 312460 Panel, Side L.h. (harvest Gold) Appelez-nous -
15 WP965173 Panel, Top (screw, 8a X 3/8 (8))   (Replaces: 246132) In-Stock Immediately $ 9.65

15 WP681414 Panel, Top (screw, 10-32)   (Replaces: 343631) In-Stock Immediately $ 7.07

15 254217 Panel, Top (screw, 10a X 3/8 (3)) Appelez-nous -
15 312465 Panel, Top (white) Appelez-nous -
15 312468 Panel, Top (harvest Gold) Appelez-nous -
15 312469 Panel, Top (almond) Appelez-nous -
15 312470 Panel, Top (toast) Appelez-nous -
15 312471 Panel, Top (platinum) Appelez-nous -
16 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

16 306280 Bolt (2) Appelez-nous -
16 327917 Support, Oven Appelez-nous -
16 306381 Nut, Retainer (2) Appelez-nous -
17 310208 Socket, Light (alternate) In-Stock Immediately $ 36.34

17 307856 Socket, Light (alternate) Appelez-nous -
17 308043 Socket, Light (screw, 10-12 X 7/8 (2)) Appelez-nous -
18 8009 Bulb, Light   (Replaces: 311255) In-Stock Immediately $ 16.80

19 98005642 Clip, Therm Bulb (2)   (Replaces: 258139) In-Stock Immediately $ 74.64

20 308894 Spring, Glass (4) Appelez-nous -
20 WP965173 Screw, 8a X 3/8 (4)   (Replaces: 246132) In-Stock Immediately $ 9.65

21 WP308544 Screw, 10-24 X 1/2 (6)   (Replaces: 308544) In-Stock Immediately $ 6.98

21 312553 Logo/panel Appelez-nous -
22 308776 Brace, Panel Appelez-nous -
23 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

23 254217 Screw, 10a X 3/8 (3) Appelez-nous -
23 309144 Strip, Barrier Appelez-nous -
24 309211 Tube Clip (2) Appelez-nous -
25 328144 End Trim R.h. (harvest Gold) Appelez-nous -
25 WP681414 End Trim R.h. (screw, 10-16 X 1/2 (8))   (Replaces: 343641) In-Stock Immediately $ 7.07

25 328141 End Trim R.h. (white) Appelez-nous -
25 328150 End Trim R.h. (almond) Appelez-nous -
25 328151 End Trim R.h. (toast) Appelez-nous -
25 328152 End Trim R.h. (platinum End Trim L.h.) Appelez-nous -
25 328146 End Trim R.h. (white) Appelez-nous -
25 328149 End Trim R.h. (harvest Gold) Appelez-nous -
25 328154 End Trim R.h. (almond) Appelez-nous -
25 328155 End Trim R.h. (toast) Appelez-nous -
25 328156 End Trim R.h. (platinum) Appelez-nous -
25 308980 End Trim R.h. (spacer (2)) Appelez-nous -
25 310304 End Trim R.h. (screw (2)) Appelez-nous -
25 246134 End Trim R.h. (screw, 10a X 1\2 (2)) Appelez-nous -
26 308896 Trim, Glass (rear) Appelez-nous -
26 WP488627 Screw, 8a X 1/2 (3)   (Replaces: 338156) Special Order $ 6.81

27 WP95292 Lamp, Fluorescent   (Replaces: 95292) In-Stock Immediately $ 121.45

28 328306 Panel, Glass Assembly Appelez-nous -
29 WP488627 Screw, 8a X 1/2 (3)   (Replaces: 338156) Special Order $ 6.81

29 308897 Trim, Glass (front) Appelez-nous -
30 306615 Washer, Nylon Appelez-nous -
31 312331 Screw (2) Appelez-nous -
31 327916 Trim, Top Appelez-nous -
32 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

32 WP681414 Screw, 10-16 X 1/2 (3)   (Replaces: 343641) In-Stock Immediately $ 7.07

32 308112 Cover, Rear Appelez-nous -
33 309507 Rear Cover Appelez-nous -
33 WP681414 Screw, 10-16 X 1\2 (14)   (Replaces: 343641) In-Stock Immediately $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

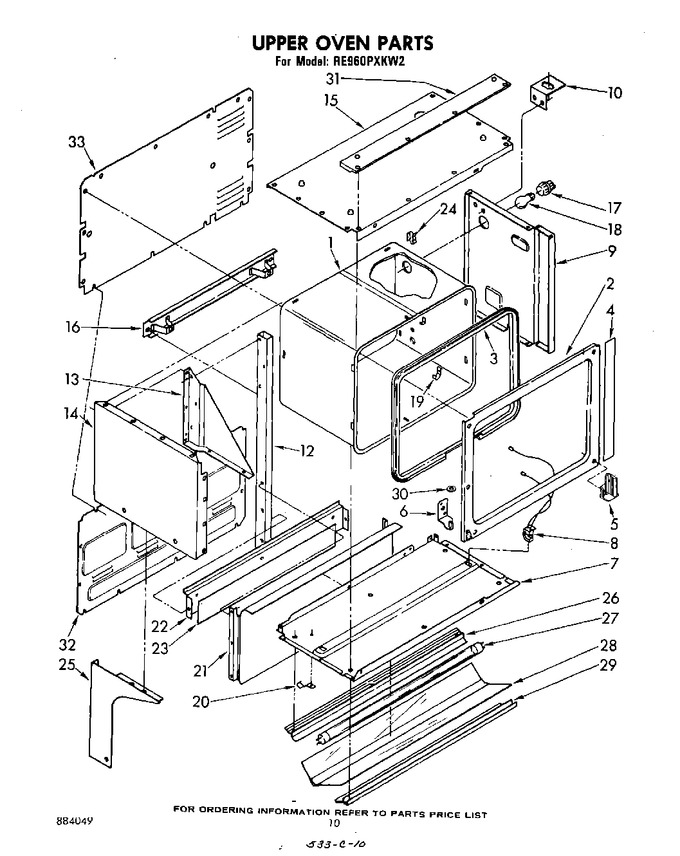

Diagram for RE960PXKW2
