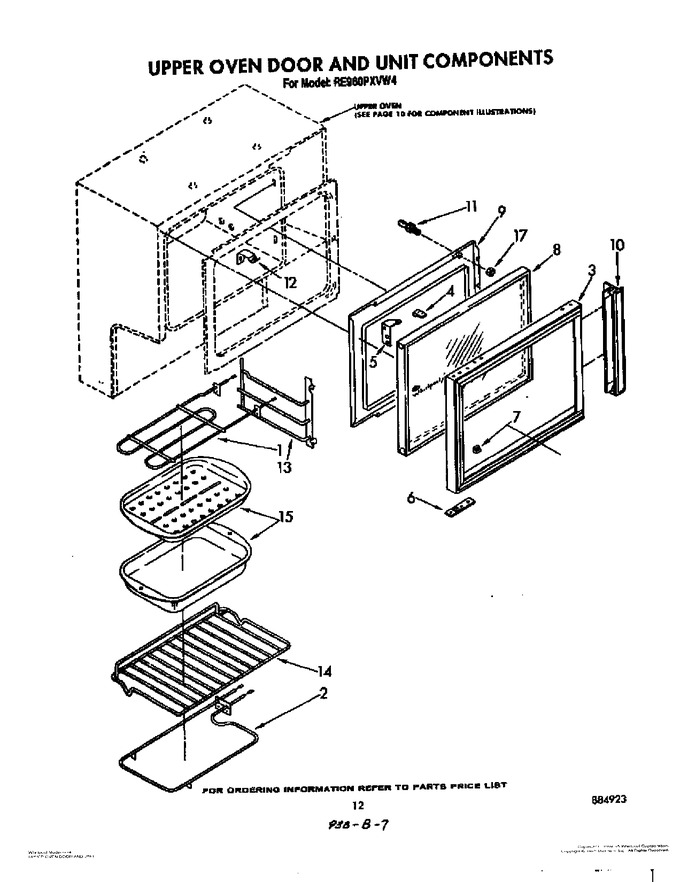

07 - Upper Oven Door And Unit


08 - Oven, Literature And Optional


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	306138		Unit, Broil		Appelez-nous	-
1	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
2	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
2	306083		Unit, Bake		Appelez-nous	-
3	312786		Frame, Door		Appelez-nous	-
4	309090		Broil Stop		Appelez-nous	-
5	3149614		Hinge, Upper		Appelez-nous	-
5	246076		Screw 10-24x3/8		Appelez-nous	-
6	306260		Plate Hinge Plated (2)		Appelez-nous	-
6	138479		Washer (2)		Appelez-nous	-
7	311599		Cushion, Window (9)		Appelez-nous	-
8	WP488627		Screw (4)   (Replaces: 342055)				$ 6.81
8	312517		Window, Oven Door		Appelez-nous	-
9	WP488627		Screw (4)   (Replaces: 342055)				$ 6.81
9	3149617		Liner, Door		Appelez-nous	-
10	3150340		Handle		Appelez-nous	-
10	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
10	309133		Screw, 8-a X 5/8 (2)		Appelez-nous	-
11	3149612		Strike, Catch		Appelez-nous	-
12	254217		Screw, 10a X 3/8		Appelez-nous	-
12	309091		Spring, Broil Stop		Appelez-nous	-
13	306371		Support, Oven Rack (2)		Appelez-nous	-
14	306672		Rack, Upper Oven		Appelez-nous	-
15	4396923		Broiler Pan Kit (upper Oven)   (Replaces: 268183)			Immediately	$ 52.04
17	WP488130		Nut   (Replaces: 313826)				$ 6.27
