SELECT A DIAGRAM
02 - Cooktop
03 - Control Panel

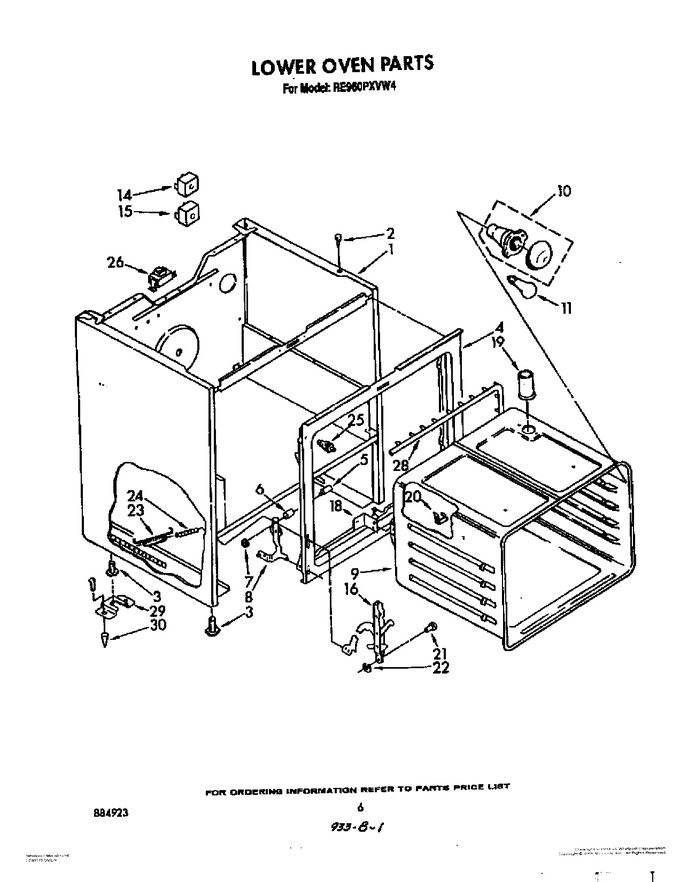

04 - Lower Oven
05 - Door And Drawer
06 - Upper Oven
07 - Upper Oven Door And Unit
08 - Oven, Literature And Optional
09 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 330090 | Main Chassis (almond) |
|
- | |||||
| 1 | WP681414 | Main Chassis (screw 10-16 X 1/2 (3)) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 330086 | Main Chassis (white) |
|
- | |||||
| 2 | 238614 | Bumper, Cooktop (2) |
|
$ 72.68 | |||||
| 3 | WPW10058460 | Leg, Leveling (4) (Replaces: 3150150) |
|
Immediately | $ 7.07 | ||||
| 4 | 3172194 | Frame, Front |
|
- | |||||
| 4 | 311056 | Screw (sides) |
|
- | |||||
| 4 | 3150537 | Screw (top) |
|
- | |||||
| 5 | 307985 | Pin, Hinge (2) |
|
$ 29.54 | |||||
| 6 | 309111 | Snubber, Door (2) |
|
- | |||||
| 7 | 308306 | Pushnut (2) |
|
- | |||||
| 8 | 327891 | Hinge (l.h.) |
|
- | |||||
| 8 | 327890 | Hinge (r.h.) |
|
- | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 9 | 311056 | Screw (3) |
|
- | |||||
| 9 | 3172547 | Oven (30`` Pyro) |
|
- | |||||
| 10 | W11594027 | Light Assembly (Replaces: 3150505) |
|
Immediately | $ 78.31 | ||||
| 11 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 14 | 314215 | Screw, No.6 |
|
- | |||||
| 14 | 314209 | Switch, Broil |
|
- | |||||
| 15 | 314215 | Screw, No.6 |
|
- | |||||
| 15 | 314210 | Switch, Bake |
|
- | |||||
| 16 | 329710 | Channel, Arm (2) |
|
- | |||||
| 18 | 311220 | Bracket, Oven (mounting) |
|
- | |||||
| 18 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 19 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 19 | 307961 | Vent, Oven |
|
- | |||||
| 20 | 98005642 | Clip, Therm Bulb (2) (Replaces: 313382) |
|
Immediately | $ 74.64 | ||||
| 21 | WP307986 | Hinge Pin (2) (Replaces: 307986) |
|
$ 11.78 | |||||
| 22 | 307594 | Ring, Retainer (2) |
|
- | |||||
| 23 | WP308126 | Spring, Oven Door (2) (Replaces: 308126) |
|
$ 38.15 | |||||
| 24 | WP308125 | Anchor, Spring (2) (Replaces: 308125) |
|
$ 10.94 | |||||
| 25 | 310345 | Switch, Door |
|
$ 94.86 | |||||
| 26 | 346772 | Ballast (alt.) |
|
- | |||||
| 26 | 685591 | Ballast (alt.) |
|
- | |||||
| 26 | 660001 | Ballast |
|
- | |||||
| 28 | 3148284 | Seal, Pyro |
|
- | |||||
| 29 | 3148604 | Screw |
|
- | |||||
| 29 | 8273888A | Bracket, Anchor (Replaces: 3148603) |
|
$ 27.96 | |||||
| 30 | 3148605 | Anchor, Plastic |
|
- | |||||
| WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.07 |
