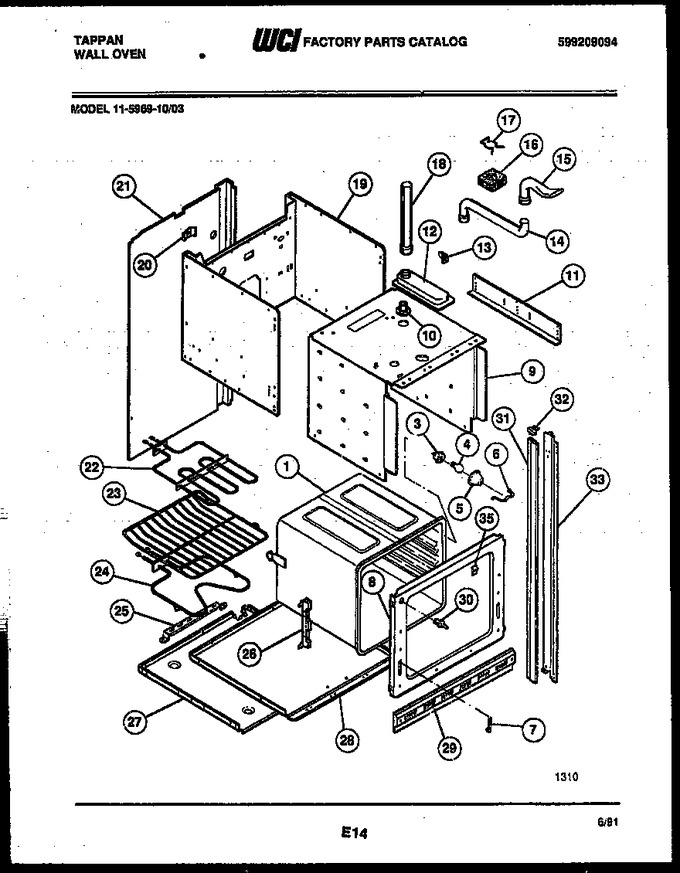

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201184		Liner-oven		Appelez-nous	-
3	316116400		Receptacle   (Replaces: 5308011085)			Immediately	$ 56.10
4	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
5	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	3202083		Frame-front		Appelez-nous	-
9	3016272		Shield - Wool		Appelez-nous	-
10	5303206498		Tube-oven Vent		Appelez-nous	-
11	3016278		Support - Height Adj		Appelez-nous	-
12	3016324		Duct-oven Vent		Appelez-nous	-
13	3016326		Bracket-oven Vent		Appelez-nous	-
14	3016327		Duct-oven Vent Pipe		Appelez-nous	-
15	3016331		Duct-oven Vent		Appelez-nous	-
16	3016302		Insulation-oven Vent		Appelez-nous	-
17	3016303		Clip-insul Retainer		Appelez-nous	-
18	3016325		Duct-oven Vent Cent		Appelez-nous	-
19	3016275		Wrapper		Appelez-nous	-
20	3016281		Spring, Oven (2)		Appelez-nous	-
21	3016335		Cover-rear		Appelez-nous	-
22	5303016247		Element, Broil				$ 223.97
23	5303016315		Rack		Appelez-nous	-
24	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
25	3016248		Support, Broil Element		Appelez-nous	-
26	3201631		Hinge Assembly (2)				$ 58.22
27	3016277		Wrapper, Base		Appelez-nous	-
28	3016273		Shield-insul Base		Appelez-nous	-
29	5303016283		Trim-base		Appelez-nous	-
30	5301314211		Switch-oven Light				$ 95.29
31	3016322		Trim-inner-lh		Appelez-nous	-
32	3202180		Trim-cap Lh		Appelez-nous	-
33	5303276508		Trim-side Outer (2)		Appelez-nous	-
35	3202082		Cover Seam		Appelez-nous	-
*53576	5300009126		Clip		Appelez-nous	-
*53576	3016323		Insulation-wrap		Appelez-nous	-
*53576	3016319		Insulation-back		Appelez-nous	-
31A	3016321		Trim-inner-rh		Appelez-nous	-
32A	3202179		Trim-cap Rh		Appelez-nous	-
