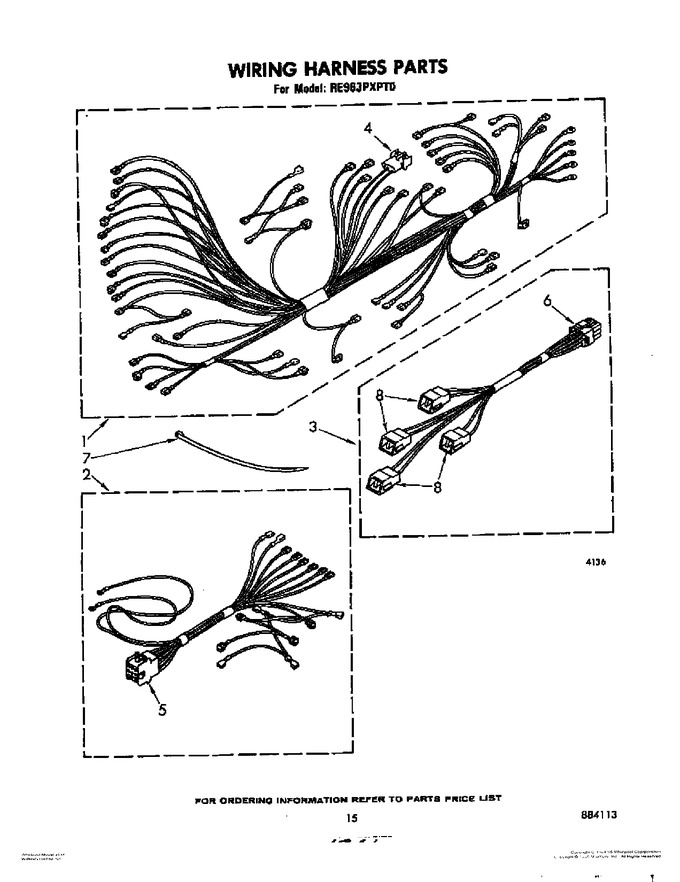

09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313586		Harness, Wiring Main		Appelez-nous	-
2	311177		Harness, Wiring Infinite Switch		Appelez-nous	-
3	311176		Harness Wiring (surface Unit)		Appelez-nous	-
4	309105		Connector Housing		Appelez-nous	-
5	309409		Cap, Female		Appelez-nous	-
6	309406		Plug, Male		Appelez-nous	-
7	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 7.11
8	330031		Receptacle			Immediately	$ 14.48

    View Diagram in Separate Window       Print Part List
