SELECT A DIAGRAM

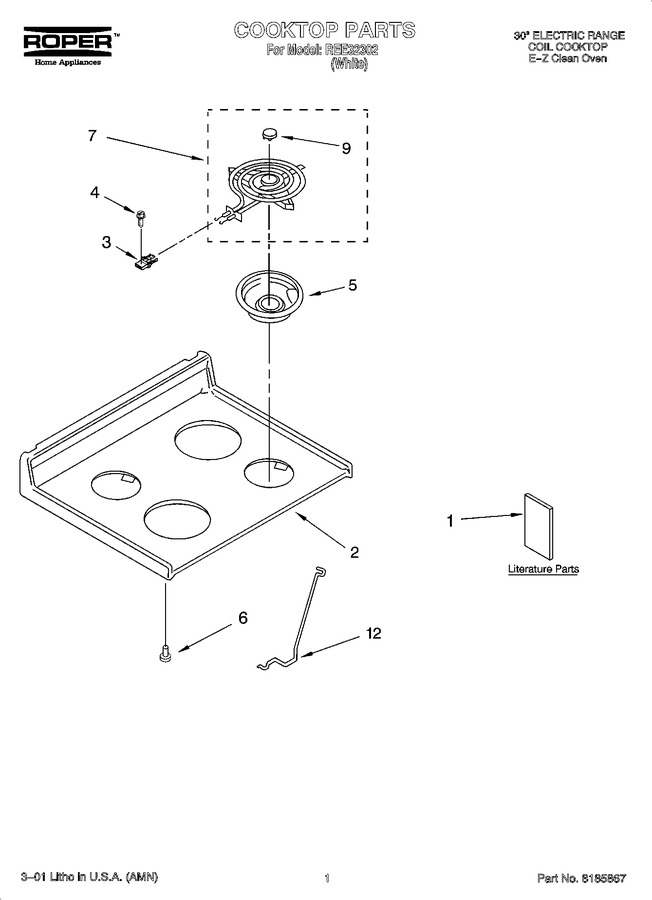

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9781875		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9754174		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3189944		Literature Parts (wiring Diagram)		Appelez-nous	-
2	9781989GW		Cooktop, Coil		Appelez-nous	-
3	9782013		Receptacle, Clip		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4   (Replaces: 9750891)				$ 6.84
5	W10196405RW		Ring-bowl 8`` (2)   (Replaces: 3150247)			Immediately	$ 18.70
5	WPW10196406		Ring-bowl 6`` (2)   (Replaces: 3150246)			Immediately	$ 12.05
6	238614		Bumper (2)   (Replaces: 9750969)				$ 72.68
7	9782076		Element, Surface (coil, 6`` Lr-rf)		Appelez-nous	-
7	9782073		Element, Surface (coil, 8`` Lf-rr)		Appelez-nous	-
9	4211952		Medallion, (4)		Appelez-nous	-
12	9780585		Rod, Support				$ 35.21
