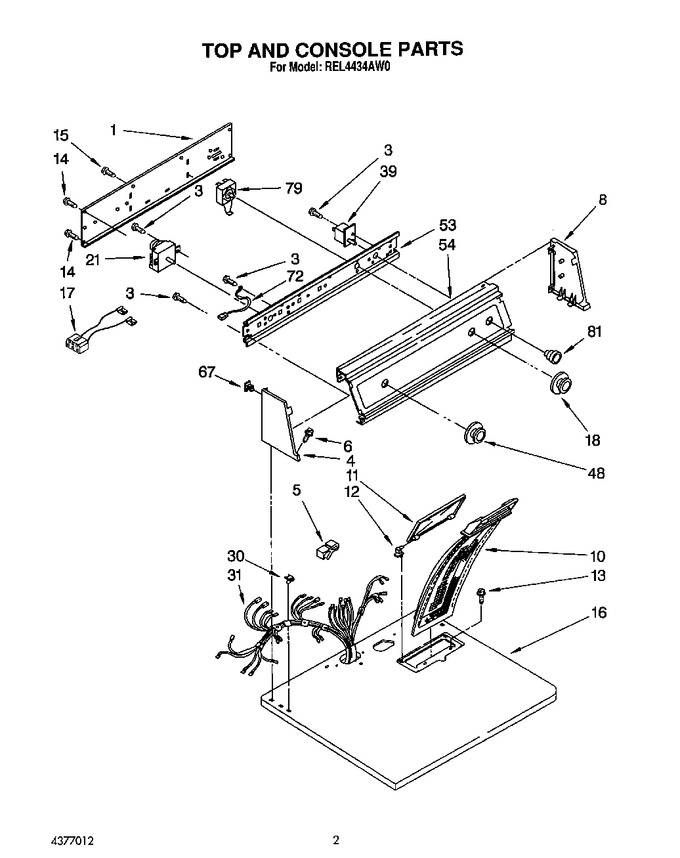

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3397545 | Panel, Rear Console |
|
- | |||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 6.75 | |||||
| 4 | 3358016 | Cap, End (l.h.) |
|
- | |||||
| 5 | 689180 | Clip, Retainer |
|
- | |||||
| 6 | WP388326 | Screw, Console (Replaces: 3353145) |
|
$ 7.30 | |||||
| 8 | 3357998 | Cap, End (r.h.) |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 337448) |
|
Immediately | $ 37.72 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 6.95 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 6.95 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 14 | WP489069 | Screw, Hex Head (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 16 | 3396022 | Top (white) |
|
- | |||||
| 16 | 3396023 | Top (almond) |
|
- | |||||
| 17 | 8283286 | Wire Jumper Assembly (Replaces: 3396028) |
|
- | |||||
| 18 | 3352167 | Control Knob, Temperature |
|
- | |||||
| 21 | 3396215 | Timer 60 Hz. |
|
$ 180.59 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.65 | |||||
| 31 | 3396219 | Harness, Wiring |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 48 | 3391823 | Timer Knob Assembly |
|
- | |||||
| 53 | 3396293 | Bracket, Control |
|
- | |||||
| 54 | 3397306 | Panel, Control |
|
- | |||||
| 67 | 689559 | Clip, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 3354281 | Switch, Temperature |
|
- | |||||
| 81 | 3391829 | Knob, Push-to-start |
|
- | |||||
| LIT3396298 | Use & Care Guide |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| LIT3391815 | Instructions, Installation |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| LIT4377012 | List, Service Parts |
|
- |
