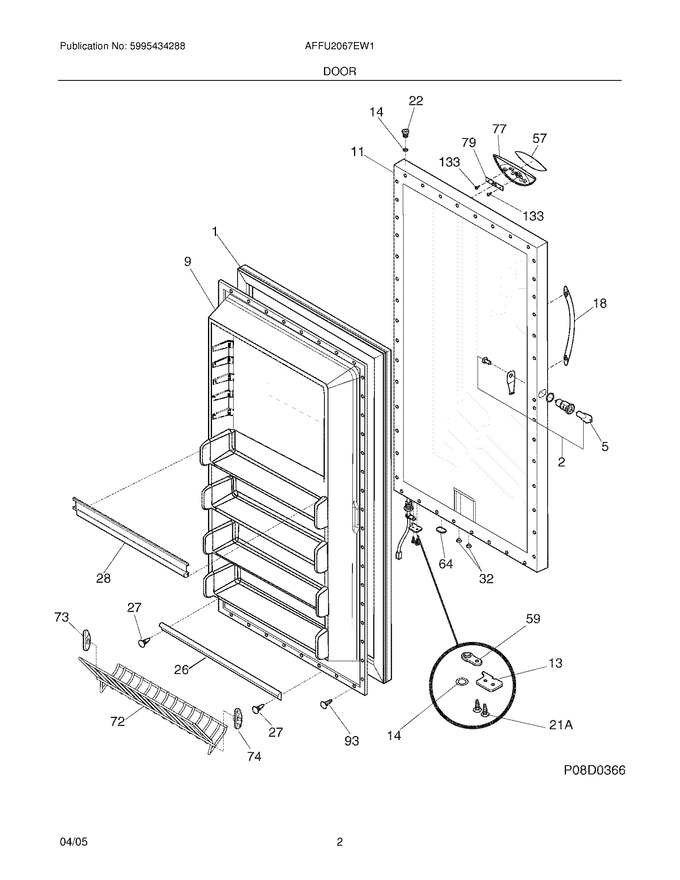

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door,white   (Replaces: 216522312)			Immediately	$ 159.60
2	5303925107		Lock Assy		Appelez-nous	-
9	216528113		Panel-inner Door,frzr				$ 231.76
11	216531230		Panel-outer Door,white		Appelez-nous	-
13	5303271076		Door Stop				$ 16.30
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216921200		Handle,white		Appelez-nous	-
22	216970802		Bearing,hinge ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216806100		Rack-door,contour ,(4)				$ 80.59
32	5309950074		Valve,breather ,door Base				$ 12.48
57	216899602		Overlay		Appelez-nous	-
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	216514100		Shelf,tilt Out ,wire ,(2)				$ 123.80
73	216513900		End Cap,shelf ,lh ,(2) ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,(2) ,tilt-out				$ 48.05
77	216897700		Bezel				$ 36.90
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
133	216905300		Screw,control Board ,no.3-24 X .25 ,(3)		Appelez-nous	-
21A	5303271077		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 8.82
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
F79	216898700		Control Board,electronic				$ 58.59
NI	216932500		Nut,flange Locking ,handle		Appelez-nous	-
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83

    View Diagram in Separate Window       Print Part List
