SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer

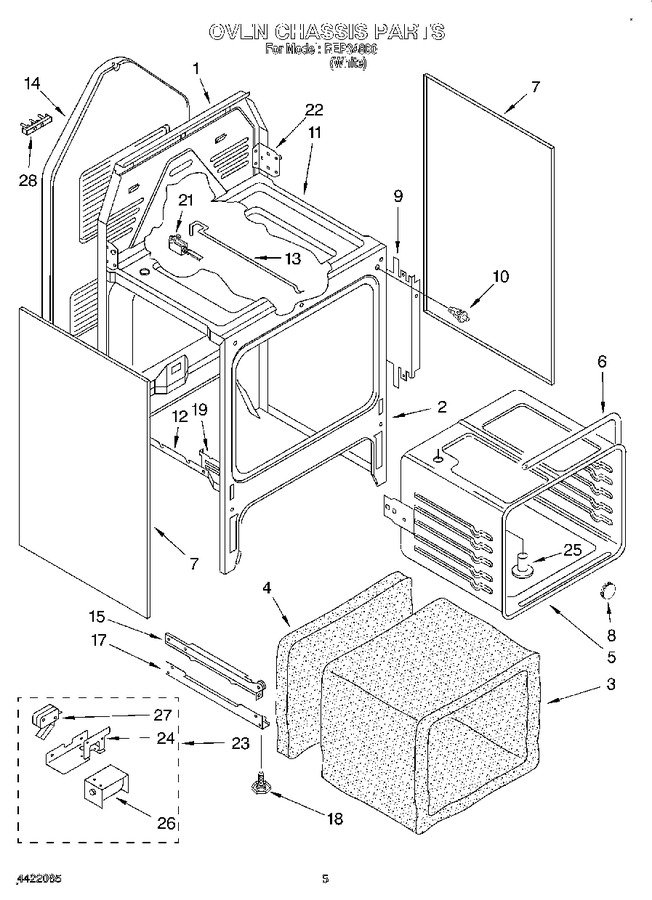

04 - Oven Chassis


05 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750146		Main Chassis, Back		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	9750222		Insulation, Wrap		Appelez-nous	-
4	9750221		Insulation, Rear		Appelez-nous	-
5	9781293GM		Oven Liner		Appelez-nous	-
6	9750247		Gasket Oven		Appelez-nous	-
7	9780265		Screw, (4)		Appelez-nous	-
7	9750148PW		Oven, Side Panel		Appelez-nous	-
8	9780578		Button, Plug		Appelez-nous	-
9	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
9	9780664		Shield, Insulation		Appelez-nous	-
10	808136601		Door Switch (oven Light)   (Replaces: 9752798)			Immediately	$ 44.04
11	9750479GM		Burner Box		Appelez-nous	-
11	9780275		Screw, (2) 8 X 3/8		Appelez-nous	-
11	9780265		Screw (7) 10 X 3/8		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
12	9780265		Screw (9) 10 X 3/8		Appelez-nous	-
13	9750523		Rod, Lock		Appelez-nous	-
14	9750150		Panel, Rear		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9750224		Rail, Drawer (right)		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
17	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9780270		Screw (2) 8 X 3/8		Appelez-nous	-
19	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
19	9750149		Receiver, Hinge (r Or L)		Appelez-nous	-
21	9752462		Single Position Device		Appelez-nous	-
21	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
22	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
23	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
23	9752404		Oven Lock Assembly (includes No.21, No.24, No.26 And No.27)		Appelez-nous	-
24	9750526		Bracket, Lock		Appelez-nous	-
24	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
25	9750736		Vent Tube		Appelez-nous	-
26	422222		Screw,10-32 X 5/16		Appelez-nous	-
26	424238		Washer, No.10		Appelez-nous	-
26	9752409		Solenoid (2)		Appelez-nous	-
27	9750965		Switch, Interlock				$ 72.00
27	9750887		Screw, (2)		Appelez-nous	-
27	9750888		Nut (2)		Appelez-nous	-
28	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
28	98884		Screw (2)		Appelez-nous	-
28	WP112432		Nut (4)   (Replaces: 65034700)				$ 7.16

    View Diagram in Separate Window       Print Part List
