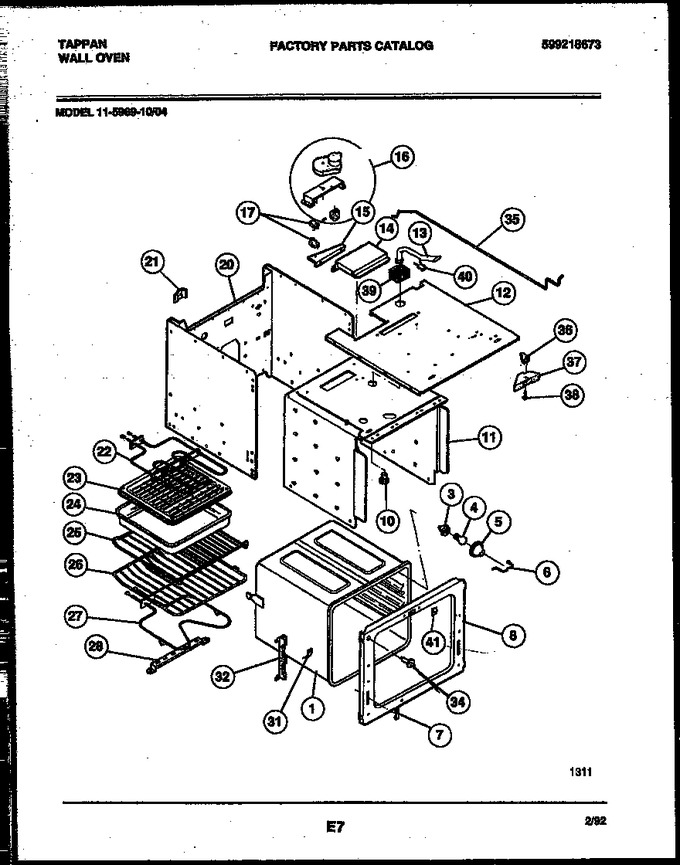

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016269 | Liner-oven |
|
- | |||||
| 3 | 316116400 | Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 6 | 3204483 | Retainer-lens |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 3019070 | Frame-front |
|
- | |||||
| 10 | 3205683 | Vent - Tube Assembly |
|
- | |||||
| 11 | 3016272 | Shield-wool (2) |
|
- | |||||
| 12 | 3016249 | Wrapper - Top |
|
- | |||||
| 13 | 3016301 | Duct-vent Tube Upper |
|
- | |||||
| 14 | 3016296 | Cover-motor |
|
- | |||||
| 15 | 3016276 | Bracket-motor Mtg |
|
- | |||||
| 16 | 5303016242 | Motor-latch Assy |
|
- | |||||
| 17 | 3202430 | Switch, Lock (2) |
|
- | |||||
| 20 | 3016320 | Wrapper |
|
- | |||||
| 21 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 22 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 23 | 3205234 | Insert, Broiler Pan |
|
- | |||||
| 24 | 3205539 | Pan, Broiler |
|
- | |||||
| 25 | 5304531722 | Rack - Off Set (Replaces: 3016282) |
|
Immediately | $ 51.05 | ||||
| 26 | 5303016315 | Rack - Regular |
|
- | |||||
| 27 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 28 | 3016248 | Support, Broil Element |
|
- | |||||
| 31 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 32 | 3201631 | Hinge Assembly (2) |
|
$ 58.22 | |||||
| 34 | 3016298 | Switch-door |
|
- | |||||
| 35 | 3016241 | Rod |
|
- | |||||
| 36 | 3051648 | Latch |
|
- | |||||
| 37 | 3019069 | Housing-latch |
|
- | |||||
| 38 | 5308012004 | Axle-latch |
|
$ 8.29 | |||||
| 39 | 3016302 | Insulation - Vent |
|
- | |||||
| 40 | 3016303 | Clip-insul Retainer |
|
- | |||||
| 41 | 3202082 | Cover Seam |
|
- | |||||
| *66344 | 3019048 | Insulation-wrap |
|
- | |||||
| *66344 | 191S018F236 | Wiring Diagram (not For Purchase) |
|
- | |||||
| *66344 | 3016274 | Insulation, Back |
|
- | |||||
| *66344 | 5303284616 | Clip-capillary (4) |
|
$ 9.86 |
