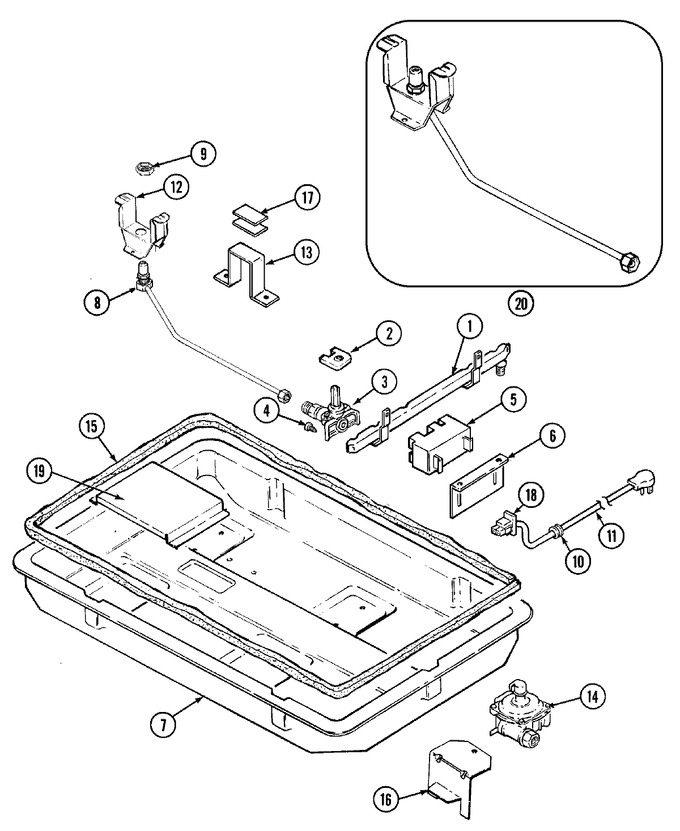

01 - Body (ra, Rb, Rs, Rv, Rw)
02 - Top Assembly (ra, Rb, Rs, Rv, Rw)
03 - Wiring Information (ra, Rb, Rs, Rv, Rw)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7513P089-60 | Pipe, Manifold | 01 |
|
- | ||||
| 1 | 74001348 | Pipe, Manifold | 15 |
|
- | ||||
| 1 | 7208P019-60 | Seal, Manifold Pipe | 01 |
|
- | ||||
| 2 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 01 |
|
$ 118.82 | ||||
| 2 | WP7403P367-60 | Switch, Burner (Replaces: 7403P367-60) | 15 |
|
$ 132.10 | ||||
| 3 | 74001382 | Valve, Burner | 15 |
|
- | ||||
| 3 | 7502P106-60 | Valve, Top Burner | 01 |
|
- | ||||
| 3 | 7502P254-60 | Valve, Burner | 03 |
|
- | ||||
| 4 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 5 | 12001596 | Module, Spark (Replaces: 7431P023-60) | 01 |
|
Immediately | $ 85.93 | |||
| 5 | 12001596 | Module, Spark (Replaces: 74003288) | 22 |
|
Immediately | $ 85.93 | |||
| 6 | 3801F357-45 | Bracket, Spark Module | 17 |
|
- | ||||
| 6 | 3801F304-45 | Bracket, Spark Module | 01 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | 4011F202-80 | Box, Burner | 01 |
|
- | ||||
| 7 | 74001368 | Box, Burner | 15 |
|
- | ||||
| 7 | 74001208 | Box, Burner | 17 |
|
- | ||||
| 8 | 7507P144-60 | Fitting, Orifice | 01 |
|
- | ||||
| 8 | 7507P143-60 | Fitting, Orifice | 01 |
|
- | ||||
| 8 | 7507P141-60 | Fitting, Orifice | 01 |
|
- | ||||
| 8 | 7507P145-60 | Fitting, Orifice | 01 |
|
- | ||||
| 9 | 7103P119-60 | Palnut | 01 |
|
- | ||||
| 10 | WP4159193 | Screw, Ground (grn) (Replaces: 7101P027-60) | 01 |
|
$ 4.29 | ||||
| 10 | 8007P003-60 | Bushing, Snap | 01 |
|
- | ||||
| 11 | 7402P014-60 | Cord, Power | 01 |
|
- | ||||
| 12 | W11233072 | Screw (Replaces: 7118P018-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | 3807F441-51 | Support, Orifice Fitting | 01 |
|
- | ||||
| 13 | 3801F298-45 | Bracket, Main Top | 01 |
|
- | ||||
| 13 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 14 | 74006983 | Regulator, Pressure | 11 |
|
$ 47.10 | ||||
| 14 | W11170853 | Regulator, Pressure (Replaces: 74001252) | 15 |
|
$ 283.08 | ||||
| 14 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 15 | 12400021 | Tape Burner Box Seal 107`` | 01 |
|
- | ||||
| 16 | 3801F192-45 | Bracket, Tie Down | 01 |
|
- | ||||
| 16 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 01 |
|
$ 12.69 | ||||
| 17 | 12400008 | Tape, Seal 112`` Long | 01 |
|
- | ||||
| 18 | 7401P017-60 | Block, Disconnect (pin) | 01 |
|
- | ||||
| 18 | 7401P018-60 | Block | 01 |
|
- | ||||
| 19 | 4005F427-51 | Cover, Access | 01 |
|
- | ||||
| 20 | 74001369 | Orifice Assy. | 15 |
|
- | ||||
| 20 | 74001372 | Orifice Assy. | 15 |
|
- | ||||
| 20 | 74001196 | Orifice Tube Assy. | 14 |
|
- | ||||
| 20 | 74001193 | Orifice Tube Assy. | 14 |
|
- | ||||
| 20 | 74001371 | Orifice Assy. | 15 |
|
- | ||||
| 20 | 74001370 | Orifice Assy. | 15 |
|
- | ||||
| 20 | 74001195 | Orifice Tube Assy. | 14 |
|
- | ||||
| 20 | 74001194 | Orifice Tube Assy. | 14 |
|
- | ||||
| 21 | 5111A610-60 | Wire, Igniter - R | 01 |
|
- | ||||
| 21 | 5111A261-60 | Wire, Igniter - R | 01 |
|
- | ||||
| 22 | 5110A421-60 | Wire, Igniter Switch Tan | 10 |
|
- | ||||
| 22 | 5110A414-60 | Wire, Igniter Switch Black | 10 |
|
- |
