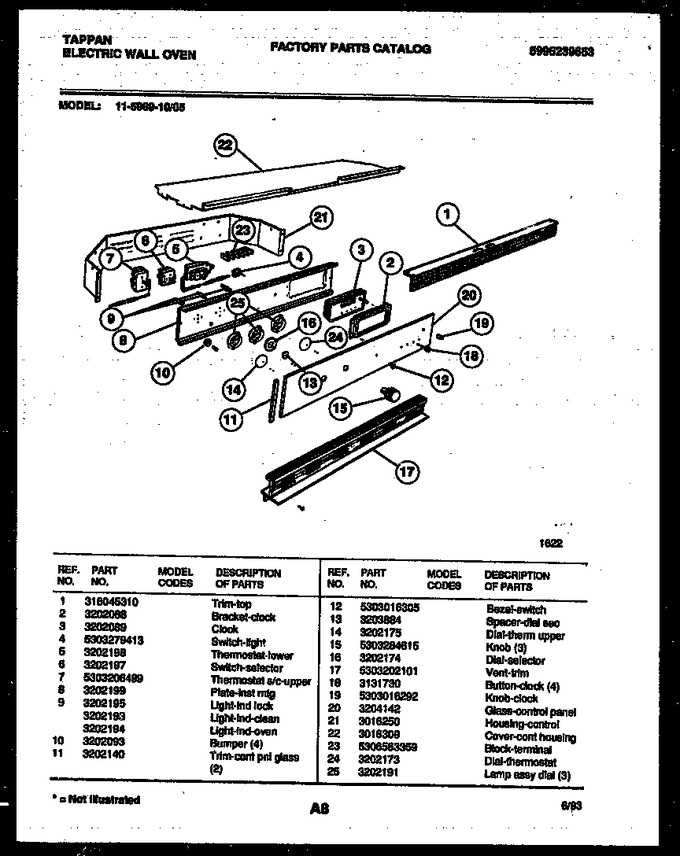

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316045310 | Trim-top |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 5303279413 | Switch-light |
|
- | |||||
| 5 | 3202198 | Thermostat (lower) |
|
- | |||||
| 6 | 3202197 | Switch, Selector |
|
- | |||||
| 7 | 5303206499 | Thermostat S/c-upper |
|
- | |||||
| 8 | 3202199 | Plate - Inst Mtg |
|
- | |||||
| 9 | 3202193 | Light-ind Clean |
|
- | |||||
| 9 | 3202195 | Light-ind Lock |
|
- | |||||
| 9 | 3202194 | Light-ind Oven |
|
- | |||||
| 10 | 3202093 | Bumper (4) |
|
- | |||||
| 11 | 3202140 | Trim-cont Pnl Glass (2) |
|
- | |||||
| 12 | 5303016305 | Bezel - Switch |
|
- | |||||
| 13 | 3203884 | Spacer - Dial Sec. |
|
- | |||||
| 14 | 3202175 | Dial - Therm Upper |
|
- | |||||
| 15 | 5303284615 | Knob (3) |
|
- | |||||
| 16 | 3202174 | Dial-selector |
|
- | |||||
| 17 | 5303202101 | Vent Trim |
|
- | |||||
| 18 | 3131730 | Button-clock (4) |
|
- | |||||
| 19 | 5303016292 | Knob-clock |
|
- | |||||
| 20 | 3204142 | Glass-control Panel |
|
- | |||||
| 21 | 3016250 | Housing, Control |
|
- | |||||
| 22 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 23 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 24 | 3202173 | Dial-thermostat |
|
- | |||||
| 25 | 3202191 | Lamp Assy.-dial (3) |
|
- |
