SELECT A DIAGRAM

02 - Cook Top


03 - Control Panel


04 - Oven , Literature And Optional


05 - Section

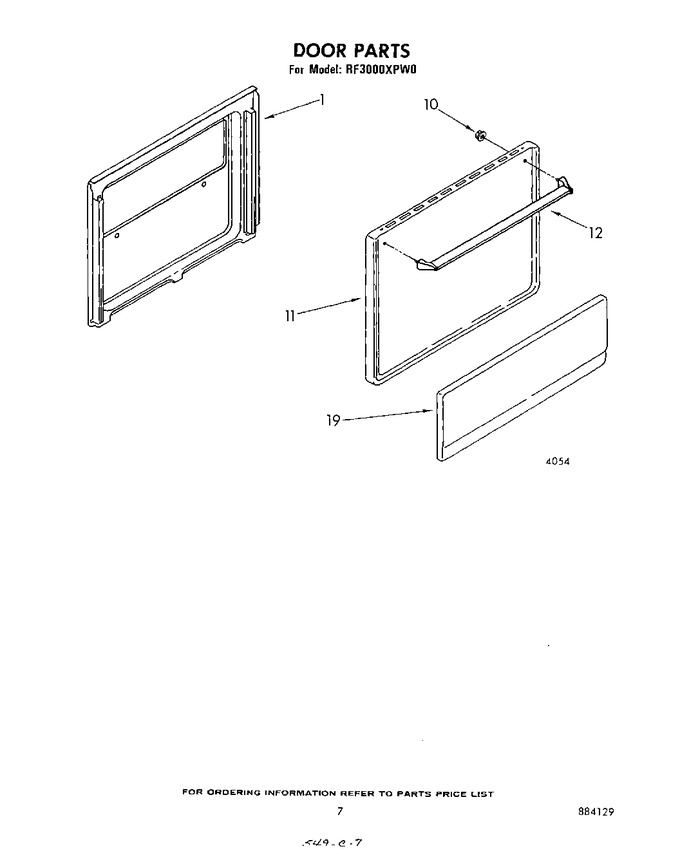

06 - Door


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329688		Liner, Door		Appelez-nous	-
10	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
11	307889		Panel, Door (white)		Appelez-nous	-
11	307895		Panel, Door (harvest Gold)		Appelez-nous	-
11	307897		Panel, Door (almond)		Appelez-nous	-
11	313177		Panel, Door (toast)		Appelez-nous	-
11	313178		Panel, Door (platinum)		Appelez-nous	-
11	307748		Panel, Door (screw, 10a X 1/2 (3))		Appelez-nous	-
11	WP488627		Panel, Door (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 6.81
12	311563		Handle, Oven Door				$ 103.11
19	307935		Panel, Lower (white)		Appelez-nous	-
19	307938		Panel, Lower (harvest Gold)		Appelez-nous	-
19	307939		Panel, Lower (almond)		Appelez-nous	-
19	313171		Panel, Lower (toast)		Appelez-nous	-
19	313172		Panel, Lower (platinum)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
