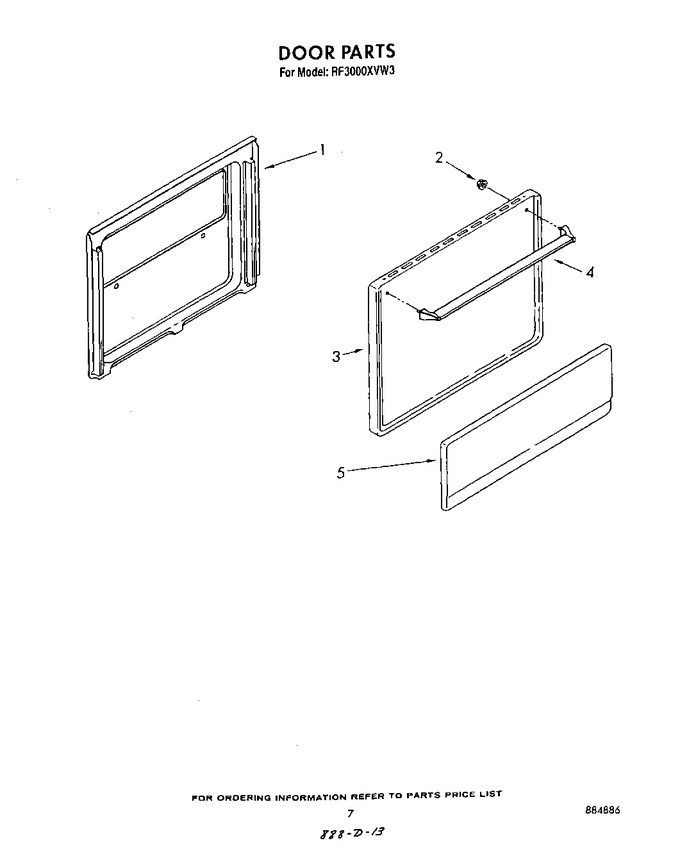

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3172221 | Liner, Door |
|
- | |||||
| 2 | WP308499 | Palnut (2) (Replaces: 308499) |
|
$ 6.26 | |||||
| 3 | 307889 | Door Panel (white) |
|
- | |||||
| 3 | 307897 | Door Panel (almond) |
|
- | |||||
| 3 | 307748 | Door Panel (screw, 10a X 1/2 (3)) |
|
- | |||||
| 3 | WP488627 | Door Panel (screw, 8a X 1/2 (2)) (Replaces: 338156) |
|
$ 6.81 | |||||
| 4 | 311563 | Handle, Oven Door |
|
$ 103.11 | |||||
| 5 | 307935 | Lower Panel (white) |
|
- | |||||
| 5 | 307939 | Lower Panel (almond) |
|
- |
