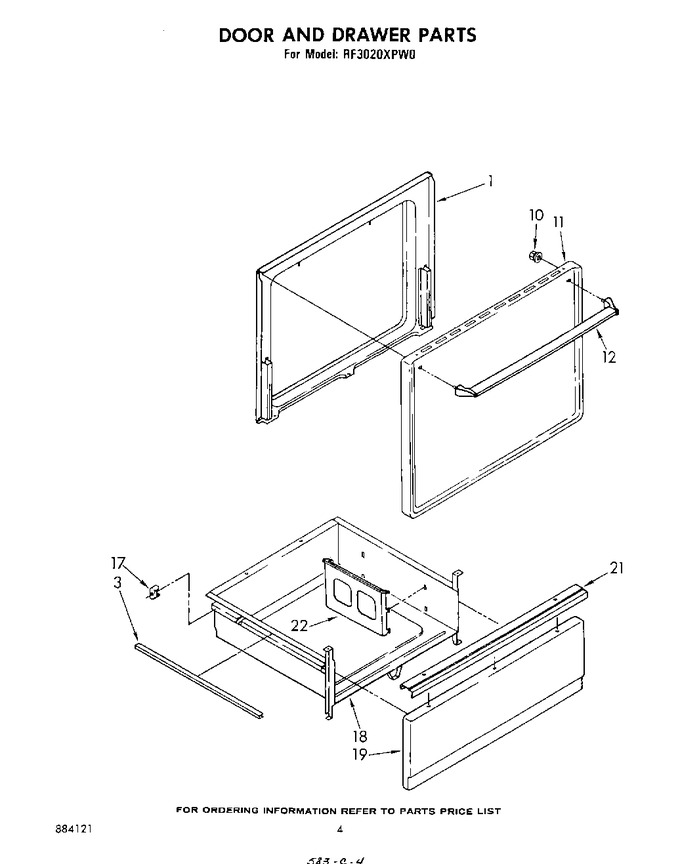

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329688		Liner, Door		Appelez-nous	-
3	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
3	309329		Protector, Drawer (2)		Appelez-nous	-
10	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
11	307748		Panel, Door (screw, 10a X 1/2 (3))		Appelez-nous	-
11	388156		Panel, Door (screw, 8a X 1/2 (2))		Appelez-nous	-
11	307889		Panel, Door (white)		Appelez-nous	-
11	307895		Panel, Door (harvest Gold)		Appelez-nous	-
11	307897		Panel, Door (almond)		Appelez-nous	-
11	313177		Panel, Door (toast)		Appelez-nous	-
11	313178		Panel, Door (platinum)		Appelez-nous	-
12	311563		Handle, Oven Door				$ 103.11
17	307980		Glide, Rear (2)		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
19	313172		Panel, Drawer (platinum)		Appelez-nous	-
19	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	313171		Panel, Drawer (toast)		Appelez-nous	-
19	307935		Panel Drawer (white)		Appelez-nous	-
21	313337		Handle, Drawer		Appelez-nous	-
21	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
22	357645		Rack, Literature		Appelez-nous	-
