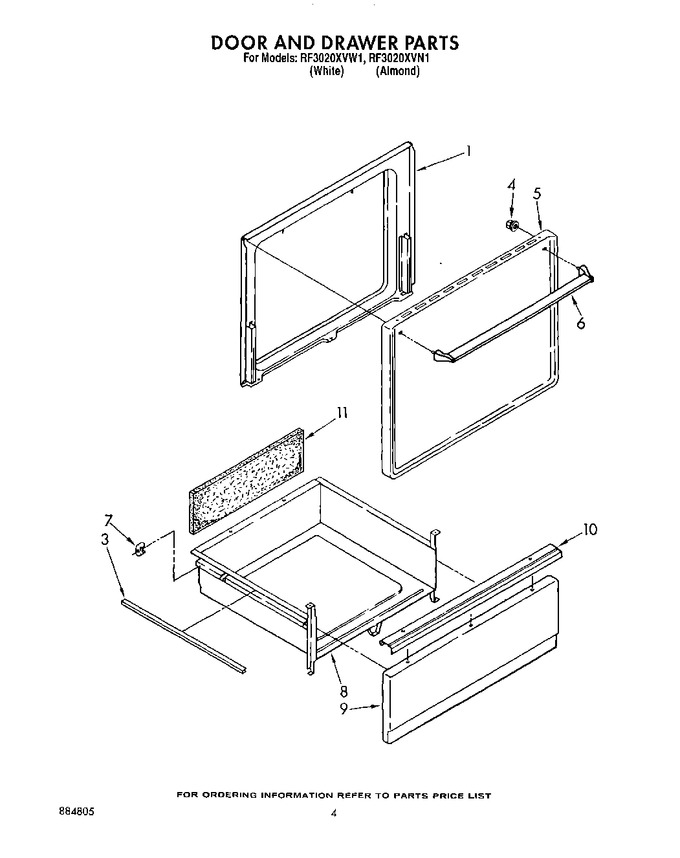

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170709		Liner, Door		Appelez-nous	-
3	309329		Protector, Drawer (2)		Appelez-nous	-
4	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
5	WP488627		Panel, Door (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 6.81
5	307897		Panel, Door (almond)		Appelez-nous	-
5	307748		Panel, Door (screw, 10a X 1/2 (3))		Appelez-nous	-
5	307889		Panel, Door (white)		Appelez-nous	-
6	311563		Handle, Oven Door				$ 103.11
7	307980		Glide, Rear (2)		Appelez-nous	-
7	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
8	327887		Drawer, Utility		Appelez-nous	-
9	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
9	307935		Panel Drawer (white)		Appelez-nous	-
9	307939		Panel, Drawer (almond)		Appelez-nous	-
10	313337		Handle, Drawer		Appelez-nous	-
10	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
11	302340		Pad, Sound		Appelez-nous	-
