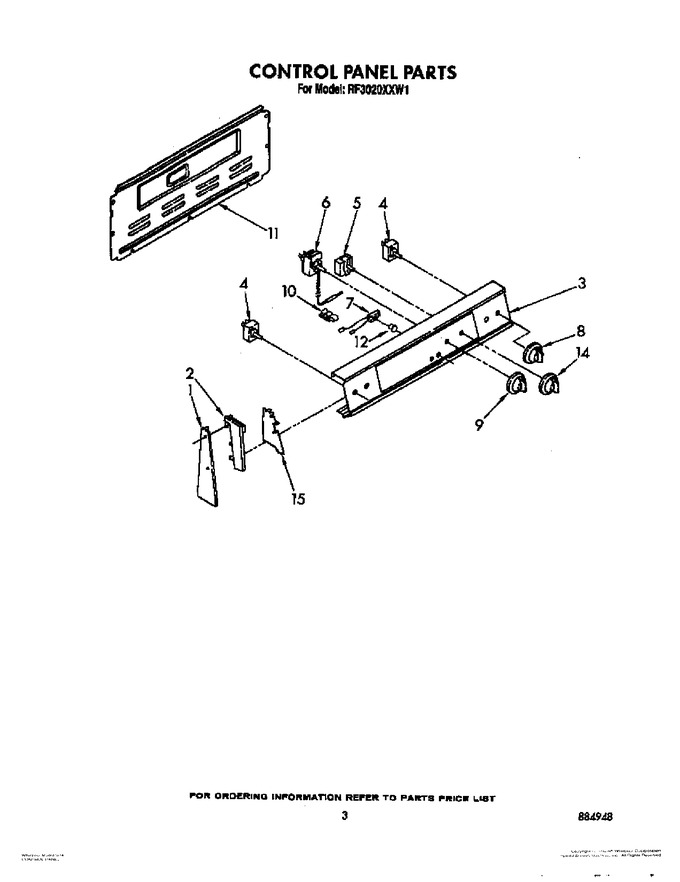

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313191 | End Trim R.h. |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 313190 | End Trim L.h. |
|
- | |||||
| 2 | 254225 | Screw, 8bt X 1/4 (4) |
|
- | |||||
| 2 | 3181677 | End Cap R.h. |
|
- | |||||
| 2 | 3181678 | End Cap L.h. |
|
- | |||||
| 3 | 312604 | Panel, Control (screw, 8-18 X 5/8 (4)) |
|
- | |||||
| 3 | 3150489 | Panel, Control (white) |
|
- | |||||
| 3 | WP681414 | Panel, Control (screw, 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 3 | 3150490 | Panel, Control (almond) |
|
- | |||||
| 4 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 4 | 5500-287 | Switch, Infinite (use W/8`` Surface Unit (1)) (Replaces: 3148953) |
|
Immediately | $ 47.15 | ||||
| 4 | 5500-287 | Switch, Infinite (use W/6`` Surface Unit (3)) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 5 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 311865) |
|
$ 6.61 | |||||
| 5 | 3150430 | Switch, Selector (3 Position) |
|
$ 66.71 | |||||
| 6 | 661150 | Thermostat |
|
- | |||||
| 6 | 311498 | Thermostat (alt.) |
|
- | |||||
| 6 | 310864 | Thermostat (alt.) |
|
- | |||||
| 7 | 3150662 | Light, Indicator (surface Unit On (includes No.12)) |
|
- | |||||
| 7 | 314031 | Light, Indicator (oven On) |
|
$ 62.88 | |||||
| 8 | WP3149983 | Knob, Control (4) (infinite Switch) (Replaces: 3149983) |
|
$ 20.91 | |||||
| 9 | 3149987 | Knob, Control (thermostat) |
|
$ 25.12 | |||||
| 10 | 313570 | Tube Clip |
|
- | |||||
| 11 | WP681414 | Screw, 10-16 X 1/2 (18) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 11 | 313195 | Rear Cover Control Panel |
|
- | |||||
| 12 | 313101 | Lens, Amber (2) |
|
- | |||||
| 14 | 3149984 | Knob, Control (selector) |
|
- | |||||
| 15 | WP965173 | Screw, No.8x3/8 (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 15 | 313608 | Shield (2) |
|
- | |||||
| WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 6.84 |
