Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.07

1 313191 End Trim R.h. Appelez-nous -
1 313190 End Trim L.h. Appelez-nous -
2 3181677 End Cap R.h. Appelez-nous -
2 254225 Screw, 8bt X 1/4 (4) Appelez-nous -
2 3181678 End Cap L.h. Appelez-nous -
3 WP681414 Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989) In-Stock Immediately $ 7.07

3 3150489 Panel, Control (white) Appelez-nous -
3 3150490 Panel, Control (almond) Appelez-nous -
3 312604 Panel, Control (screw, 8-18 X 5/8 (4)) Appelez-nous -
4 WP486579 Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865) Special Order $ 6.61

4 5500-287 Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 3148951) In-Stock Immediately $ 47.15

4 5500-287 Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 3148953) In-Stock Immediately $ 47.15

5 3150430 Switch, Selector (3 Position) Special Order $ 66.71

5 WP486579 Screw, 8-32 X 1/4 (2)   (Replaces: 311865) Special Order $ 6.61

6 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 6.84

6 311498 (alt.) Appelez-nous -
6 310864 (alt.) Appelez-nous -
6 661150 Thermostat Appelez-nous -
7 3150662 Light, Indicator (surface Unit On (includes No.12)) Appelez-nous -
7 314031 Light, Indicator (oven On) Special Order $ 62.88

8 WP3149983 Knob, Control (4) (infinite Switch)   (Replaces: 3149983) Special Order $ 20.91

9 3149987 Knob, Control (thermostat) Special Order $ 25.12

10 313570 Tube Clip Appelez-nous -
11 WP681414 Screw, 10-16 X 1/2 (18)   (Replaces: 343641) In-Stock Immediately $ 7.07

11 313195 Rear Cover Control Panel Appelez-nous -
12 313101 Lens, Amber (2) Appelez-nous -
14 3149984 Knob, Control (selector) Appelez-nous -
15 313608 Shield (2) Appelez-nous -
15 WP965173 Screw, No.8x3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 9.65


    View Diagram in Separate Window     Print Icon   Print Part List

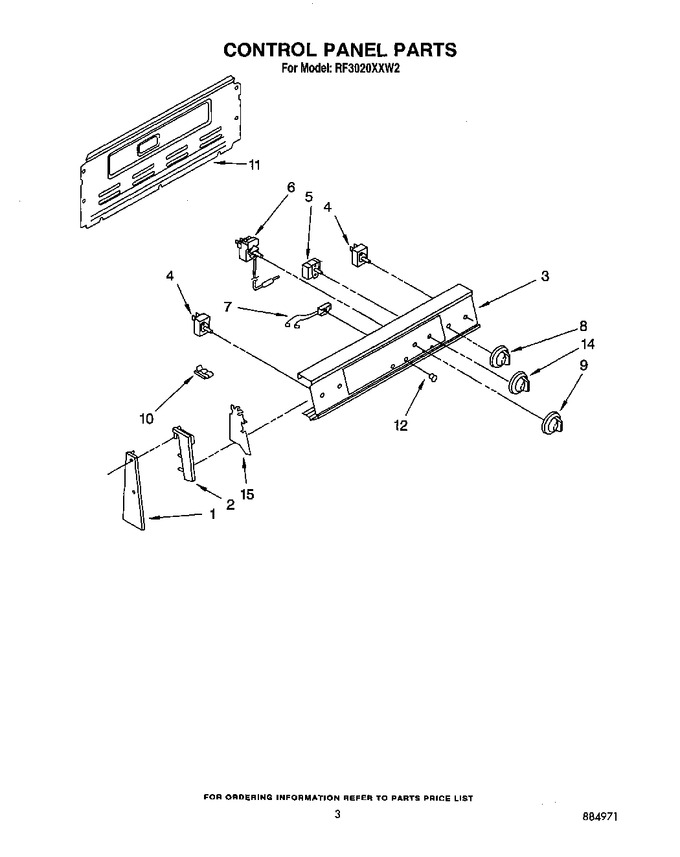

Diagram for RF3020XXW2
