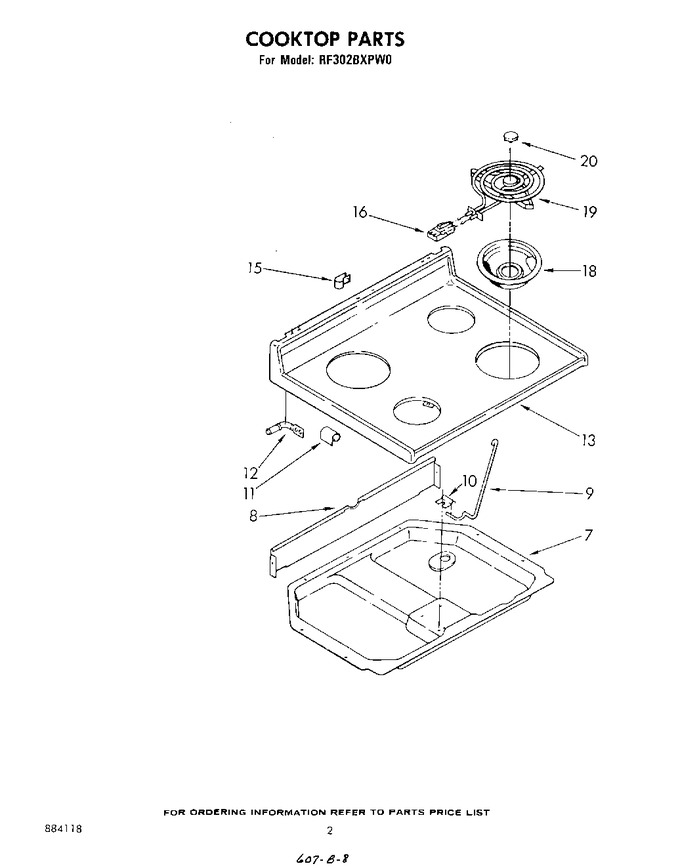

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	307929		Burner Box		Appelez-nous	-
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	307968		Rod, Cooktop		Appelez-nous	-
10	307967		Retainer, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
13	313167		Cooktop (toast)		Appelez-nous	-
13	307872		Cooktop (almond)		Appelez-nous	-
13	307867		Cooktop (harvest Gold)		Appelez-nous	-
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
13	313168		Cooktop (platinum)		Appelez-nous	-
13	307870		Cooktop (white)		Appelez-nous	-
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
16	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
16	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
18	WPW10196406		Reflector Pan (6`` (3))   (Replaces: 308539)			Immediately	$ 12.05
18	W10196405RW		Reflector Pan (8`` (1))   (Replaces: 308540)			Immediately	$ 18.70
19	WP660533		Unit, Surface 8`` R.f. & L.r. 309185 (alt.) 309216 (alt.) (includes Illus. 20)   (Replaces: 660530)			Immediately	$ 39.47
19	WP660532		Unit, Surface 6`` L.f. & R.r. 309191 (alt.) 309249 (alt.)   (Replaces: 660528)			Immediately	$ 36.90
20	309195		Medallion (4)		Appelez-nous	-
