SELECT A DIAGRAM

01 - Cooktop

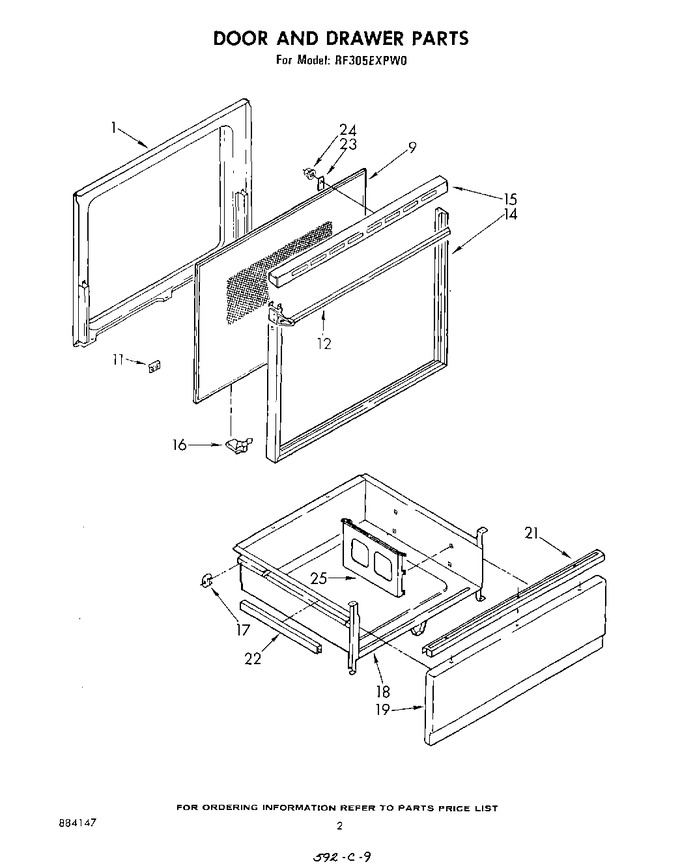

02 - Door And Drawer


03 - Control Panel


04 - Oven , Literature And Optional


05 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw, 10a X 1/2 (6)		Appelez-nous	-
1	329688		Liner, Door		Appelez-nous	-
9	00573829		Glass, Outer   (Replaces: 310655)			Immediately	$ 27.48
11	311506		Clip (2)		Appelez-nous	-
12	WP355515		Screw, 8a X 7/8 (4)   (Replaces: 355515)				$ 6.90
12	312722		Handle, Oven Door				$ 118.10
14	310427		Frame, Door		Appelez-nous	-
15	310784		Top, Door Frame		Appelez-nous	-
15	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
16	310706		Clip, Glass (10)		Appelez-nous	-
17	307980		Glide, Rear (2)		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	313171		Panel, Drawer (toast)		Appelez-nous	-
19	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
19	307935		Panel Drawer (white)		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
19	313172		Panel, Drawer (platinum)		Appelez-nous	-
21	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
21	313337		Handle, Drawer		Appelez-nous	-
22	309329		Protector, Drawer		Appelez-nous	-
23	310705		Hold Down, Glass (2)		Appelez-nous	-
24	WP90296		Fastener Pushnut (2)   (Replaces: 90296)				$ 7.07
25	357645		Rack, Literature		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
