SELECT A DIAGRAM

02 - Door And Drawer


03 - Oven, Literature And Optional


04 - Cooktop


05 - Control Panel


06 - Oven (continued)


07 - Wiring Harness

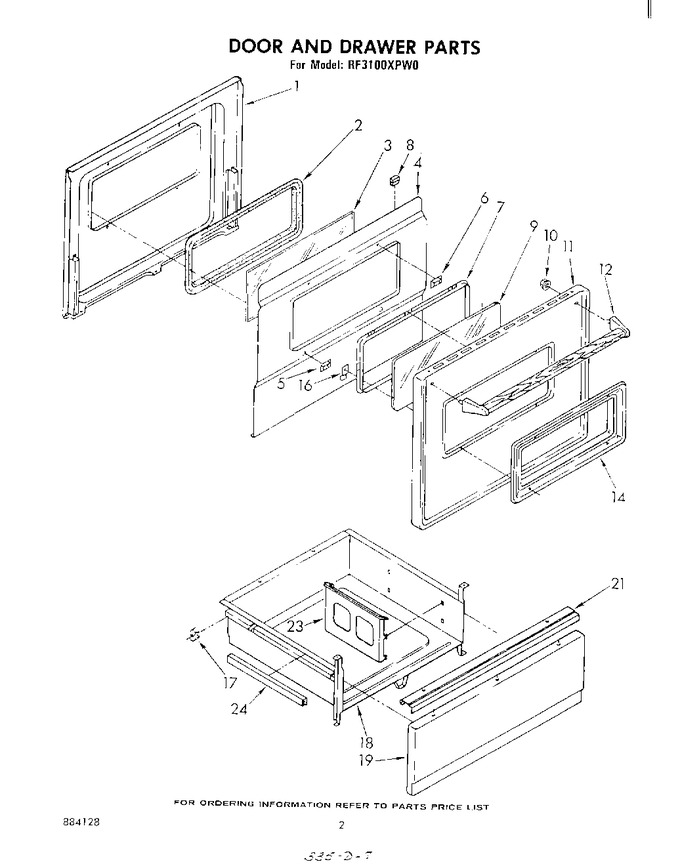

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw, 10a X 1/2 (4)		Appelez-nous	-
1	309133		Screw, 8-a X 5/8 (2)		Appelez-nous	-
1	329687		Liner, Door		Appelez-nous	-
2	258711		Seal, Glass		Appelez-nous	-
3	258988		Glass, Inner		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
5	309137		Spacer, Baffle (2)		Appelez-nous	-
5	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
6	258990		Spacer, Baffle (4)		Appelez-nous	-
7	307792		Retainer, Glass		Appelez-nous	-
8	312783		Bumper, Rubber (4)		Appelez-nous	-
9	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
9	307732		Glass, Outer		Appelez-nous	-
10	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
11	313176		Panel, Door (platinum)		Appelez-nous	-
11	WP488627		Panel, Door (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 6.81
11	307888		Panel, Door (white)		Appelez-nous	-
11	307894		Panel, Door (harvest Gold)		Appelez-nous	-
11	307896		Panel, Door (almond)		Appelez-nous	-
11	313175		Panel, Door (toast)		Appelez-nous	-
11	307748		Panel, Door (screw, 10a X 1/2 (3))		Appelez-nous	-
12	311563		Handle, Oven Door (black)				$ 103.11
14	309173		Frame, Window		Appelez-nous	-
16	307731		Clip, Frame		Appelez-nous	-
17	307980		Glide, Rear		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	313171		Panel, Drawer (toast)		Appelez-nous	-
19	313172		Panel, Drawer (platinum)		Appelez-nous	-
19	WP488787		Panel, Drawer (screw (3))   (Replaces: 312566)				$ 9.52
19	307935		Panel Drawer (white)		Appelez-nous	-
19	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
21	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
21	313337		Handle, Drawer		Appelez-nous	-
23	357645		Rack, Literature		Appelez-nous	-
24	309329		Protector, Drawer Side (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
