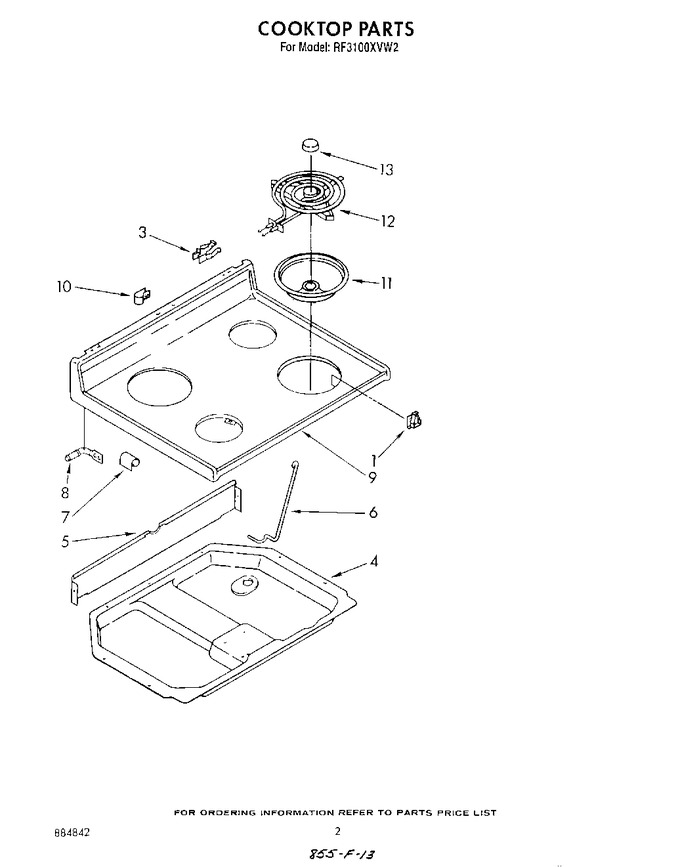

02 - Cooktop
03 - Control Panel
04 - Oven, Lit/optional
05 - Section
06 - Door And Drawer
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 814102 | Nut (4) |
|
$ 5.27 | |||||
| 1 | 00487887 | Screw (4) (Replaces: 487887) |
|
$ 220.32 | |||||
| 1 | 814103 | Clip, Mtg. (4) (Replaces: 3148790) |
|
$ 9.02 | |||||
| 3 | WP313808 | Screw (4) (Replaces: 313808) |
|
$ 6.84 | |||||
| 3 | 330031 | Clip, Retainer (4) (Replaces: 312606) |
|
Immediately | $ 14.48 | ||||
| 4 | 3150186 | Box, Burner |
|
- | |||||
| 4 | WP3390631 | Screw, 10a X 3/8 (4) (Replaces: 309112) |
|
$ 7.04 | |||||
| 5 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 5 | 307973 | Shield, Wiring |
|
- | |||||
| 6 | 3148659 | Rod, Cooktop |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 7 | 307965 | Bracket, Cooktop (2) |
|
- | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 8 | 307966 | Pin, Cooktop (2) |
|
- | |||||
| 9 | 3170982 | Cooktop (almond) |
|
- | |||||
| 9 | 3170981 | Cooktop (white) |
|
- | |||||
| 9 | WP681414 | Cooktop (screw 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 10 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 10 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 11 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 3150247) |
|
Immediately | $ 18.70 | ||||
| 11 | WPW10196406 | Reflector Pan 6`` (2) (Replaces: 3150246) |
|
Immediately | $ 12.05 | ||||
| 12 | WP660532 | Unit, Surface 6`` (2) (alt.) (Replaces: 309249) |
|
Immediately | $ 36.90 | ||||
| 12 | WP660532 | Unit, Surface 6`` (2) (Replaces: 660528) |
|
Immediately | $ 36.90 | ||||
| 12 | WP660532 | Unit, Surface 6`` (2) (alt.) (Replaces: 309191) |
|
Immediately | $ 36.90 | ||||
| 13 | 309195 | Medallion (4) |
|
- | |||||
| WP660533 | (alt.) (includes Illus. 20) (Replaces: 309216) |
|
Immediately | $ 39.47 | |||||
| WP660533 | Unit, Surface 8`` (2) (Replaces: 660530) |
|
Immediately | $ 39.47 | |||||
| LIT3149507 | Book, Cooking |
|
- | ||||||
| LIT3149911 | Guide, Use & Care |
|
- | ||||||
| WP660533 | (alt.) (Replaces: 309185) |
|
Immediately | $ 39.47 | |||||
| LIT884842 | Repair Parts List |
|
- | ||||||
| LIT3148614 | Installation Instructions |
|
- | ||||||
| LIT313054 | Wiring Diagram |
|
- |
