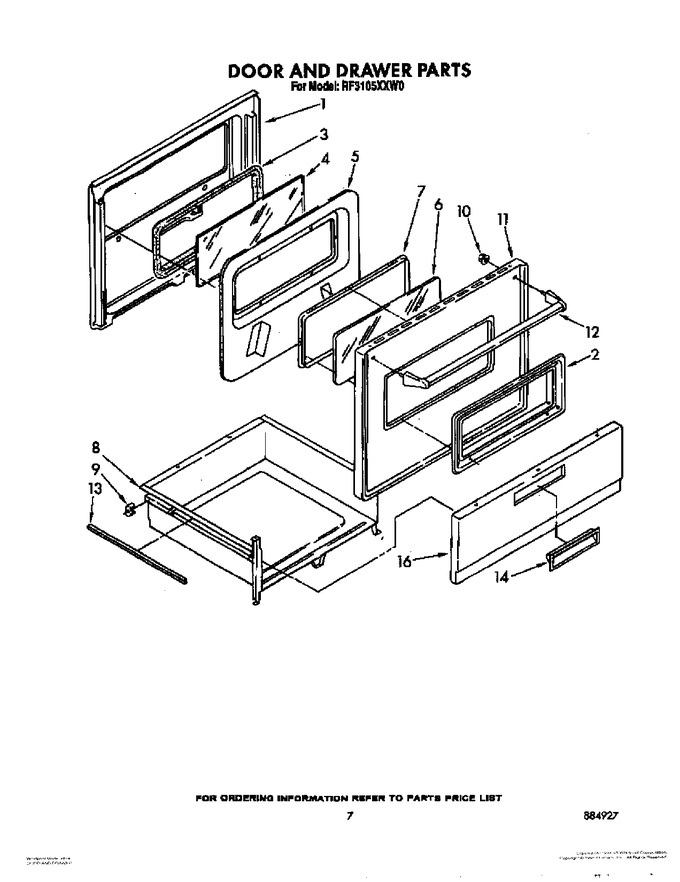

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
2	309133		Screw (2) 8a X 5/8		Appelez-nous	-
2	3149277		Frame, Window				$ 93.12
3	3148183		Seal, Door				$ 7.41
4	3148179		Glass, Inner		Appelez-nous	-
5	307731		Clip, Frame (2)		Appelez-nous	-
5	3148443		Screw (6)		Appelez-nous	-
5	3148287		Retainer, Insulation		Appelez-nous	-
6	307732		Glass, Outer		Appelez-nous	-
7	313045		Screw (8) 7-19 X 3/8		Appelez-nous	-
7	307792		Retainer, Frame		Appelez-nous	-
8	327887		Drawer, Utility		Appelez-nous	-
9	307980		Glide, Rear (2)		Appelez-nous	-
10	WP308499		Palnut (2)   (Replaces: 3169090)				$ 6.26
11	307888		Panel, Door (white)		Appelez-nous	-
11	WP488627		Panel, Door (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 6.81
11	307748		Panel, Door (screw, 10a X 1/2 (3))		Appelez-nous	-
11	307896		Panel, Door (almond)		Appelez-nous	-
12	311563		Handle, Oven Door				$ 103.11
13	309329		Protector (2)		Appelez-nous	-
14	3150613		Handle, Snap-in (almond)		Appelez-nous	-
14	3150612		Handle, Snap-in (white)		Appelez-nous	-
16	WP488787		Panel, Lower (screw No.8-18 X .5 (5))   (Replaces: 312566)				$ 9.52
16	3150676		Panel, Lower (white)		Appelez-nous	-
16	3150677		Panel, Lower (almond)		Appelez-nous	-
