SELECT A DIAGRAM

02 - Cook Top


03 - Control Panel


04 - Oven


05 - Door And Drawer


06 - Wiring Harness , Lit/optional

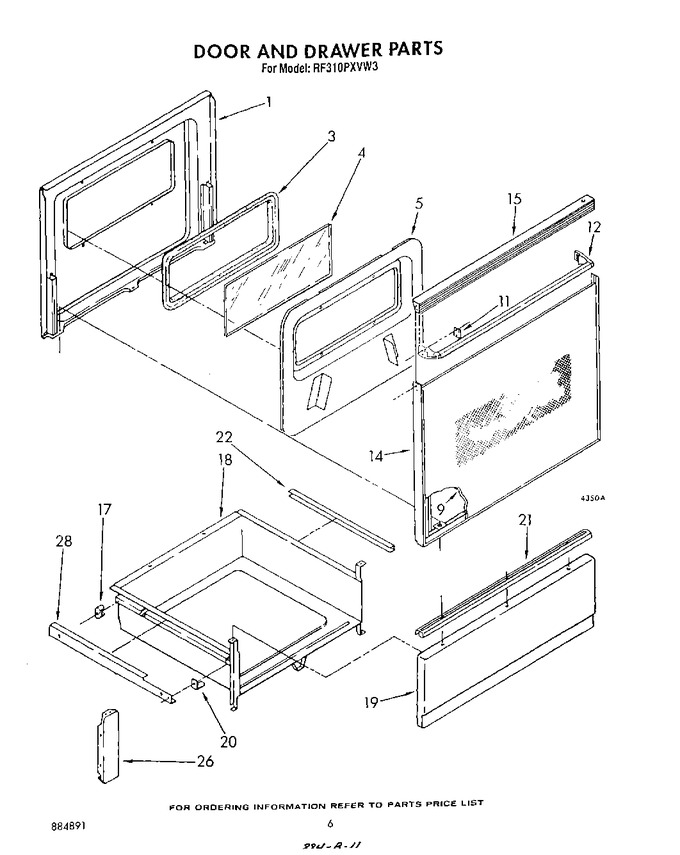

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw, 10a X 1/2 (3)		Appelez-nous	-
1	311056		Screw, 10a X 1/2 (4)		Appelez-nous	-
1	3172220		Liner, Door		Appelez-nous	-
3	3148183		Seal, Glass				$ 7.41
4	3148179		Glass, Inner		Appelez-nous	-
5	3148443		Screw, 8-18 X 5/16 (6)		Appelez-nous	-
5	3148287		Retainer,		Appelez-nous	-
9	3148185		Panel, Outer		Appelez-nous	-
11	3148282		Clip (2)				$ 8.69
12	WP355515		Screw, 8a X 7/8 (4)   (Replaces: 355515)				$ 6.90
12	3148228		Handle, Door		Appelez-nous	-
14	3148235		Frame, Door		Appelez-nous	-
14	3149333		Screw (3)				$ 5.33
14	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
15	3148223		Top, Door Frame		Appelez-nous	-
15	3149333		Screw (2)				$ 5.33
17	307980		Glide, Rear		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
19	307935		Panel Drawer (white)		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	307938		Panel, Drawer (gold)		Appelez-nous	-
20	3149257		Glide, Front (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
21	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
21	313337		Handle, Drawer		Appelez-nous	-
22	309329		Protector, Drawer (2)		Appelez-nous	-
26	307981		Bracket, Rail (2)		Appelez-nous	-
28	307748		Rail, Slide (screw (2))		Appelez-nous	-
28	3149256		Rail, Slide (l.h. (includes No. 20))		Appelez-nous	-
28	3149255		Rail, Slide (r.h.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
