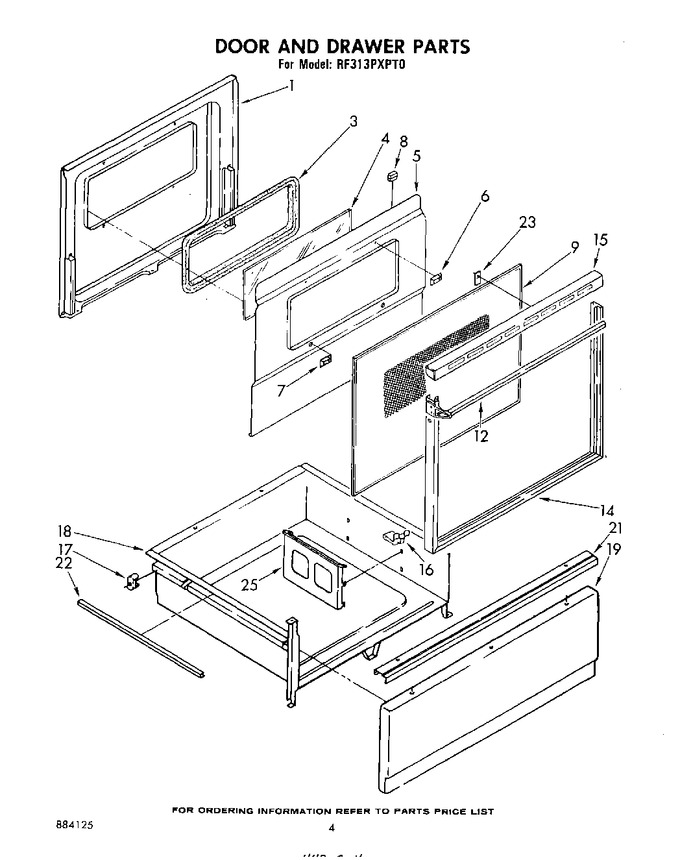

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw, 10a X 1/2 (4)		Appelez-nous	-
1	329687		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (3)		Appelez-nous	-
1	311506		Clip (2)		Appelez-nous	-
3	258711		Seal, Glass		Appelez-nous	-
4	258988		Glass, Inner		Appelez-nous	-
5	307924		Baffle, Insulation		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
6	258990		Spacer, Baffle (2)		Appelez-nous	-
7	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
7	258990		Spacer, Baffle		Appelez-nous	-
8	312783		Channel, Rubber (4)		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
12	WP355515		Screw, 8a X 7/8 (4)   (Replaces: 355515)				$ 6.90
12	312722		Handle, Oven Door				$ 118.10
14	310427		Frame, Door		Appelez-nous	-
15	WP90296		Fastener, Flat   (Replaces: 90296)				$ 7.07
15	310428		Top, Door Frame		Appelez-nous	-
15	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
16	310706		Clip, Glass (10)		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
17	307980		Glide, Rear (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 312566)				$ 9.52
19	309923		Panel Drawer (black)		Appelez-nous	-
21	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
21	313337		Handle, Drawer		Appelez-nous	-
22	309329		Protector, Drawer (2)		Appelez-nous	-
23	310705		Clip (2)		Appelez-nous	-
25	357645		Rack, Literature		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
